A/RH2-TT100-O-SUN-2 | OUTSIDE, 4X, SUN SHIELD, 2% | ACI
Relative Humidity, RH Outputs: 0-5, 0-10 VDC(Default) & 4-20mA, Outside Air, Sun Shield, ± 2% Accuracy, Transmitter w/ 100 Ohm RTD, NEMA 4X Enclosure, 2-10VDC (Temp)
Documents and manuals
ACI A/RH2-TT100-O-SUN-2 Documents
Overview
Details for A/RH2-TT100-O-SUN-2
OUTSIDE, 4X, SUN SHIELD, 2%

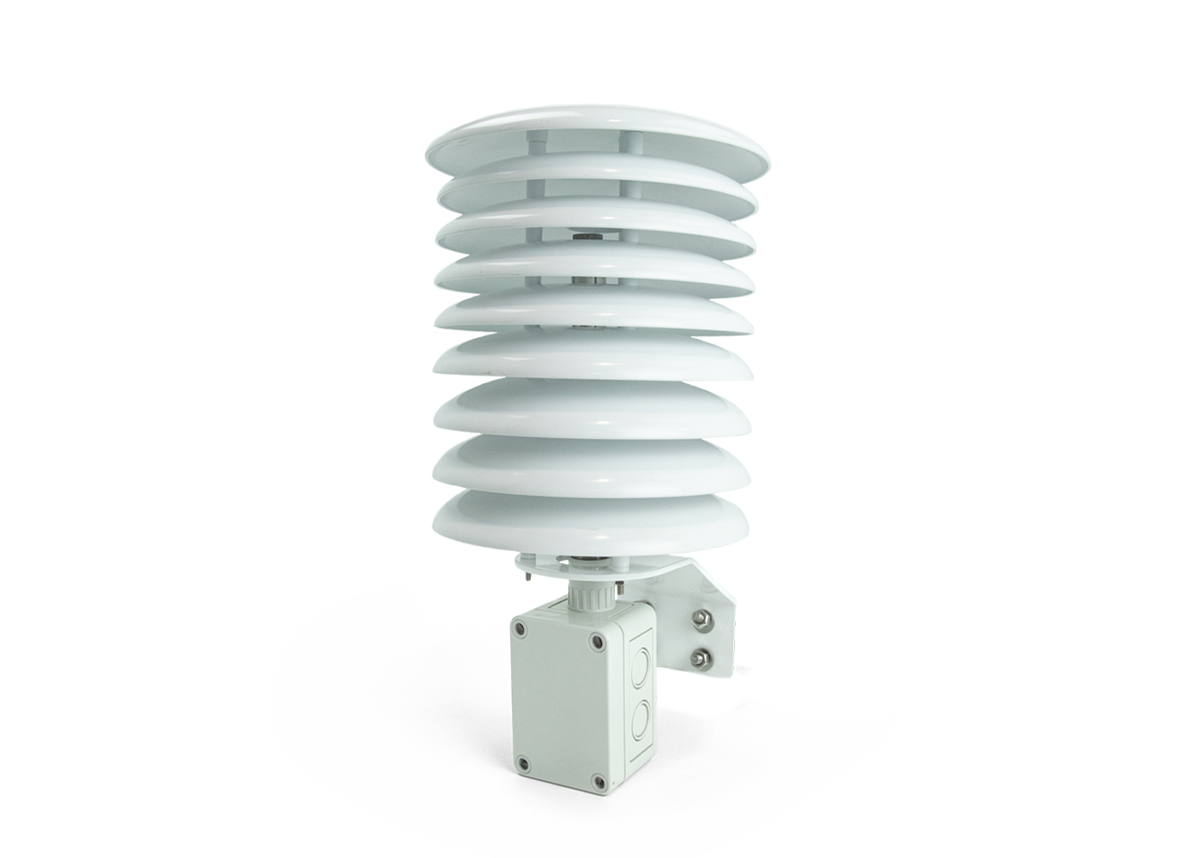

The ACI Sun Shield is a reliable solution for protecting both Temperature and Relative Humidity sensors when mounted in a location where an overhang or shade is unavailable. It consists of nine (9) molded, white plastic plates which are used to reduce the thermal effect of the sun and increasing the air-flow between the plates. The Sun Shield also provides an added level of protection for the sensors from rain and snow. The Sun Shield is available with our +/-2% RH transmitter, any of our standard temperature sensors, and has field selectable outputs of 4-20mA, 0-5VDC and 0-10VDC (for RH).
Specifications
| Item Number | A/RH2-TT100-O-SUN-2 |
| Brand | ACI |
