A/RH2-R-LCD-010 | Relative Humidity, Room, Humidity with LCD, 0-10 VDC | ACI
Relative Humidity, Room, Humidity with LCD, ± 2% Accuracy, 0-10 VDC
Documents and manuals
ACI A/RH2-R-LCD-010 Documents
Overview
Details for A/RH2-R-LCD-010
Relative Humidity, Room, Humidity with LCD, 0-10 VDC

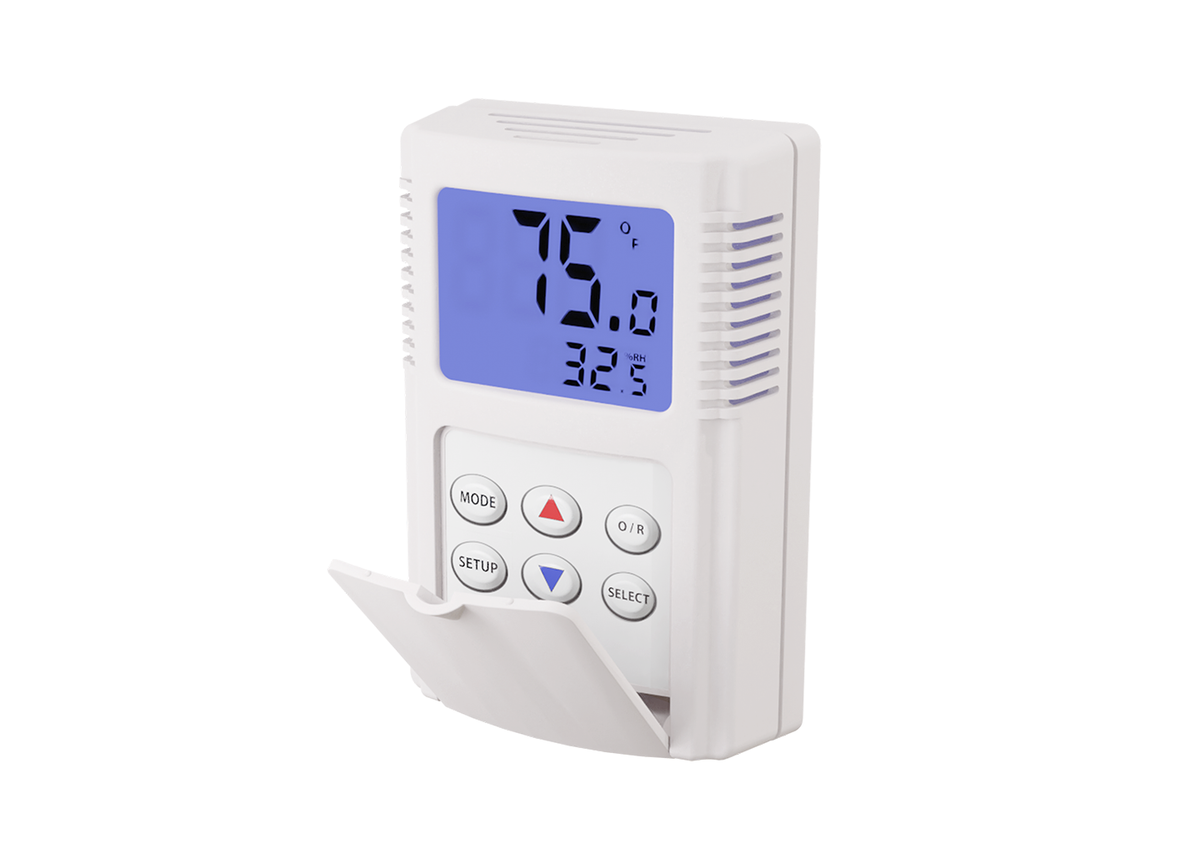

Humidity Sensor with LCD
The ACI Relative Humidity with LCD utilizes a thermoset polymer capacitive sensing element with integral hydrophobic filter to deliver a proportional analog current or voltage output with long term reliability. The styling of the white, wall mounted enclosure with hinged cover makes it suitable for use in a wide variety of applications. The ACI RH LCD series products can be powered with either an AC or DC supply voltage and features a large, backlit display which improves the overall visibility of the display. Other features include onsite eld calibration through a single point o‘set through the programming of the device using the integral keypad. All units must be ordered with one of the supported output signals of 4-20 mA, 0-5 VDC, or 0-10 VDC. For additional options, including temperature, set point, override, fan and system settings, please see the A/TUCH2 product data sheet.
Applications: Local Humidity Display, Hospitals and Operating Rooms, Pharmaceutical Labs, Clean Rooms, ESD Static Control, Humidification, Dehumidification
The ACI RH LCD is covered by ACI's Five (5) Year Limited Warranty. The warranty can be found in the front of ACI's Sensors & Transmitters catalog, as well as on ACI's website, www.workaci.com.
Specifications
Item Number | A/RH2-R-LCD-010 |
Brand | ACI |
