Documents: A/RH2-CP-O-NIST

Datasheet Installation Instructions More Info

A/RH2-CP-O-NIST | NIST CONFIGURATOR | ACI

Relative Humidity, RH Outputs: 0-5, 0-10 VDC & 4-20mA (Default), Outside Air, ± 2% Accuracy, 10, 000 Ohm Thermistor (Type II), Euro Enclosure, NIST Cert

Brand: ACISKU: A/RH2-CP-O-NIST

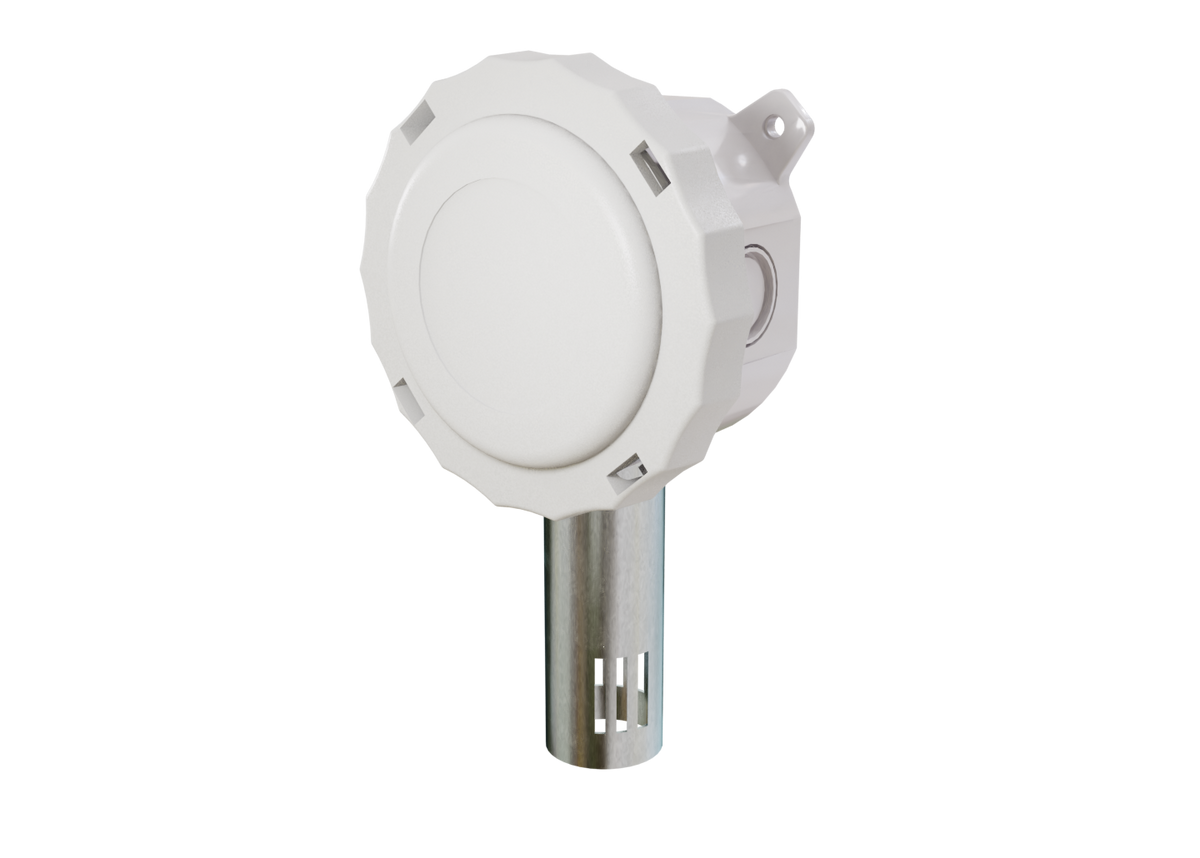

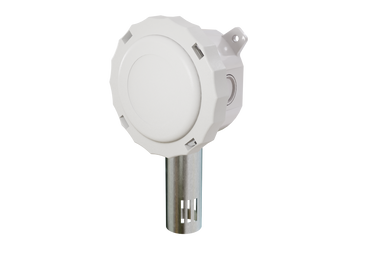

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to A/RH2-CP-O-NIST

Jump to: Overview & Specifications Reviews

Overview Details for A/RH2-CP-O-NIST

NIST CONFIGURATOR

The A/RH Series (resistive temperature output) relative humidity transmitters utilize a capacitive sensing element to deliver a proportional analog output. The series features on board DIP switches which allow the user to select the desired output signal and can be powered by AC or DC power sources. Field calibration can be performed by using the on board increment and decrement DIP switches. These enhancements provide increased flexibility and outstanding long-term performance. The A/RH Series is covered by ACI's Five (5) Year Limited Warranty.

Part numbers in this series include: A/RH1-AN-O, A/RH1-CP-O, A/RH1-CSI-O, A/RH1-100-O, A/RH1-1K-O, A/RH1-1K-NI-O, A/RH1-10KE-O, A/RH1-10KE1-O, A/RH1-3K-O, A/RH1-20K-O, A/RH1-10KS-O, A/RH1-100KS-O, A/RH1-1.8K-O, A/RH1-AN-BC-O

Single point field calibration
Field selectable output signals (0-5 VDC, 0-10 VDC, 4-20 mA)
