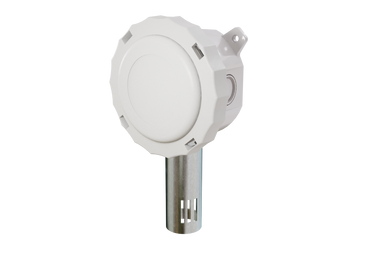

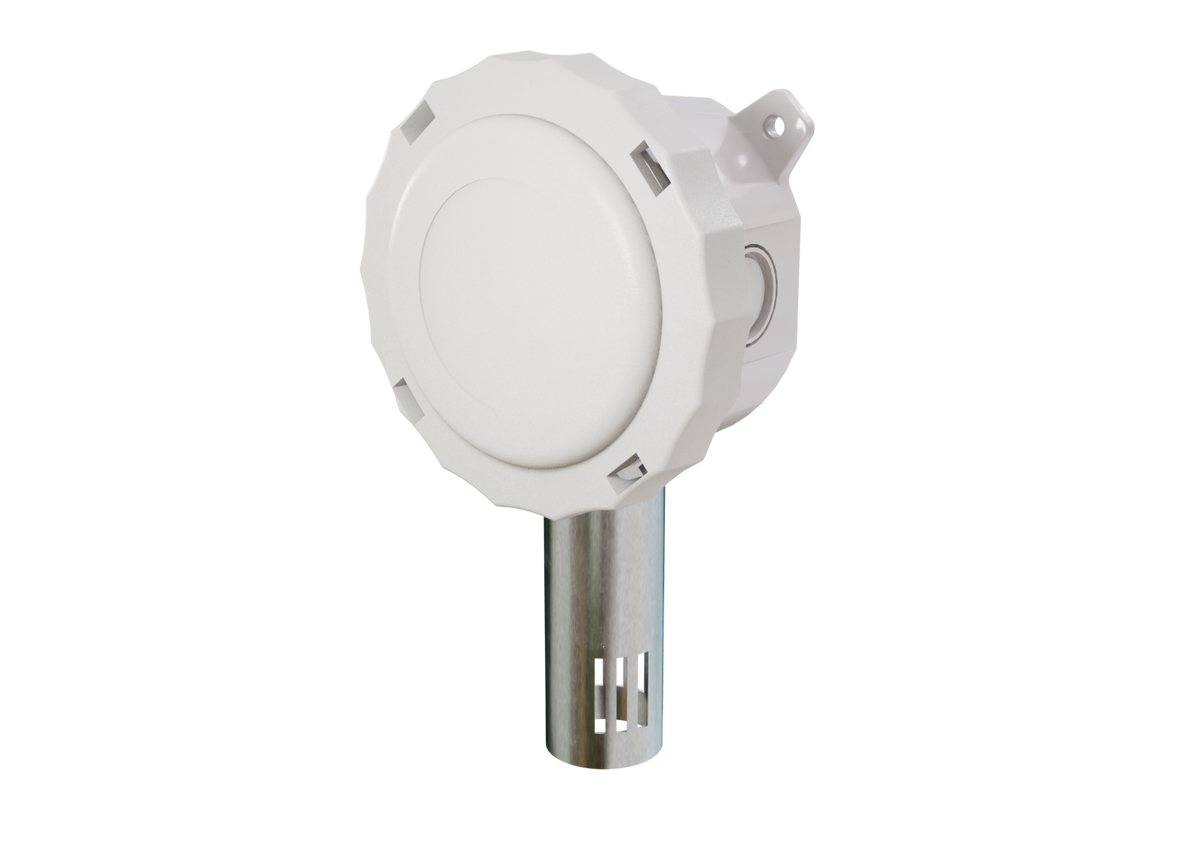

A/RH2-50K-O | Relative Humidity, RH Outputs: 0-5, 0-10 VDC & 4-20mA (Default), Outside Air, ± 2% Accuracy, 50,000 Ohm Thermistor | ACI
Relative Humidity, RH Outputs: 0-5, 0-10 VDC & 4-20mA (Default), Outside Air, ± 2% Accuracy, 50, 000 Ohm Thermistor
Documents and manuals
ACI A/RH2-50K-O Documents
Overview
Details for A/RH2-50K-O
Relative Humidity, RH Outputs: 0-5, 0-10 VDC & 4-20mA (Default), Outside Air, ± 2% Accuracy, 50,000 Ohm Thermistor
The A/RH Series (resistive temperature output) relative humidity transmitters utilize a capacitive sensing element to deliver a proportional analog output. The series features on board DIP switches which allow the user to select the desired output signal and can be powered by AC or DC power sources. Field calibration can be performed by using the on board increment and decrement DIP switches. These enhancements provide increased flexibility and outstanding long-term performance. The A/RH Series is covered by ACI's Five (5) Year Limited Warranty.
Part numbers in this series include: A/RH1-AN-O, A/RH1-CP-O, A/RH1-CSI-O, A/RH1-100-O, A/RH1-1K-O, A/RH1-1K-NI-O, A/RH1-10KE-O, A/RH1-10KE1-O, A/RH1-3K-O, A/RH1-20K-O, A/RH1-10KS-O, A/RH1-100KS-O, A/RH1-1.8K-O, A/RH1-AN-BC-O
- Single point field calibration
- Field selectable output signals (0-5 VDC, 0-10 VDC, 4-20 mA)
Specifications
Item Number | A/RH2-50K-O |
Brand | ACI |
