A/MLP2-2K5-P-B-A-A-0P | Differential Pressure Sensor Transducer Bidirectional | +/- 2500 Pa | 4-20 mA | ACI

Differential Pressure, Panel Mount, 2, 500 pascals, BiDirectional, +/- 0.5% FSO, 4-20mA

ACI | A/MLP2-2K5-P-B-A-A-0P

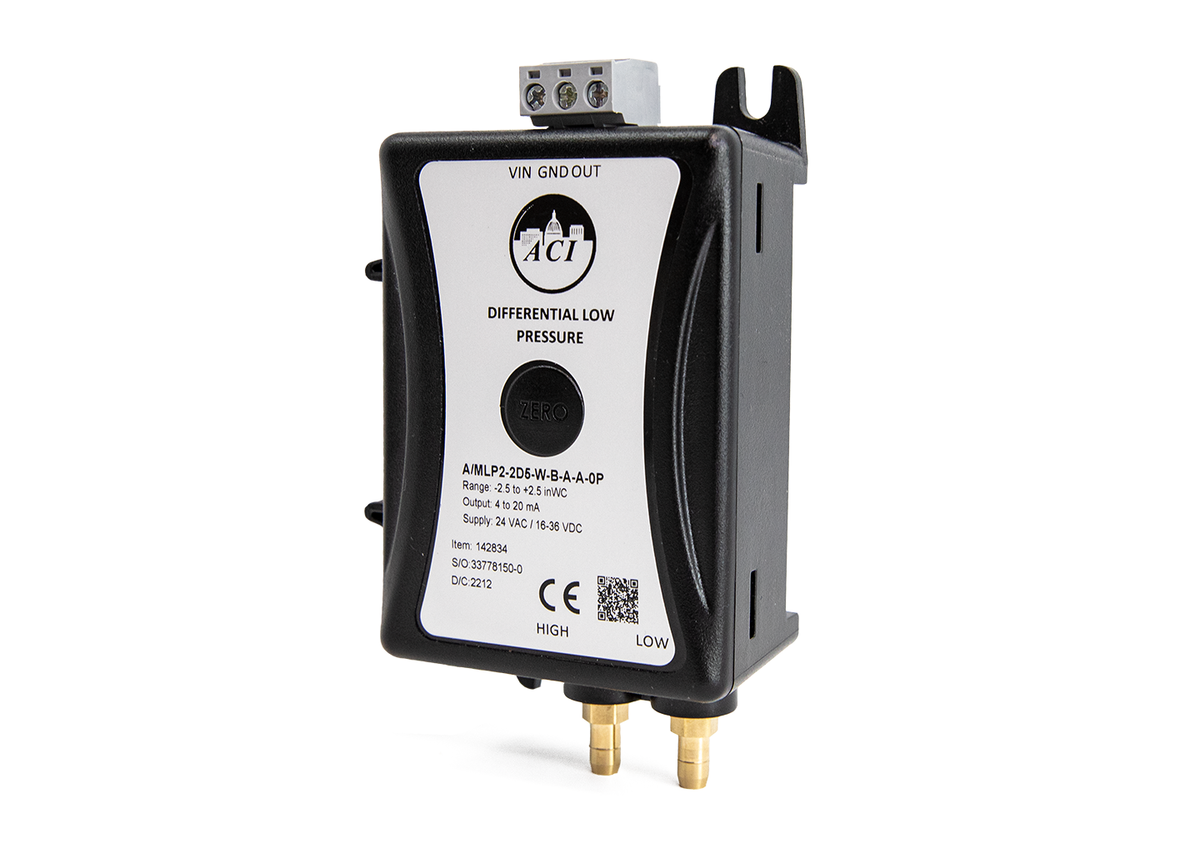

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to A/MLP2-2K5-P-B-A-A-0P

Documents and manuals

ACI A/MLP2-2K5-P-B-A-A-0P Documents

Overview

Details for A/MLP2-2K5-P-B-A-A-0P

A/MLP2-2K5-P-B-A-A-0P | Differential Pressure Sensor Transducer Bidirectional | +/- 2500 Pa | 4-20 mA

The MLP2 Series Low Differential Pressure transmitters are designed for use in OEM or high-density panel mounting applications. Key installation features include an integral 35 mm Din rail mounting foot, vertically orientated wiring and pressure connections, and a pushbutton zero function conveniently located on the front cover. The MLP2 incorporates a high accuracy, piezo resistive, silicon sensing element which senses differential pressure and provides a linear 4 to 20 mA or DC voltage output equal to the specified pressure range. This technology reduces warmup shift while also reducing the effect of package stress for increased long-term stability. In addition, the unit contains a de-pluggable terminal block that can be removed for ease of installation. This unit must be ordered with a single uni or bi-directional pressure range and output signal from +/- 0.1 of water column to a maximum pressure of +/- 40 of water column depending on your application. All MLP2 Series pressure transmitters are calibrated using NIST Certified equipment. Optional 3 or 5 point NIST Certificates are available and must be specified when placing your order. Applications: Building and Duct Static Pressure, Filter Monitoring, Air Flow Measurement, Process Control, Roof Top Units, Air Handlers, Clean Rooms, Isolation Rooms, Data Centers.

The MLP2 Series Low Differential Pressure transmitters are covered by ACI's Five (5) Year Limited Warranty. The warranty can be found in the front of ACI's Sensors & Transmitters catalog, as well as on ACI's website, Www.Workaci.Com.

Specifications

Item Number A/MLP2-2K5-P-B-A-A-0P
Brand ACI
Direction Bidirectional
Pressure Output Signal 4-20 mA
Pressure Range +/- 2500 Pa
Pressure Sensor Type Differential
Sensor Pressure
