A/MLP2-025-W-U-A-B-0P | Differential Pressure Sensor Transducer Unidirectional | 0-25" w.c. | 0-5 VDC | ACI

A/MLP2-025-W-U-A-B-0P | Differential Pressure Sensor Transducer Unidirectional | 0-25" w.c. | 0-5 VDC

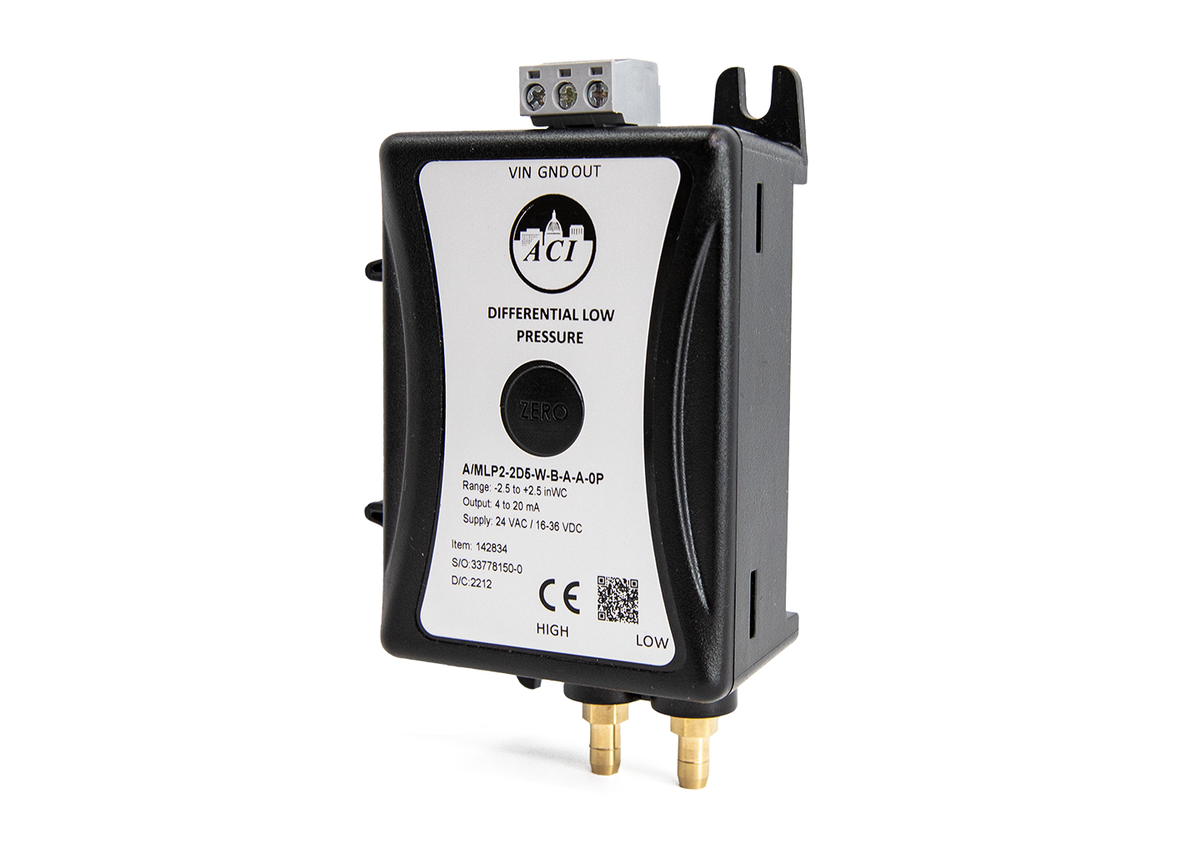

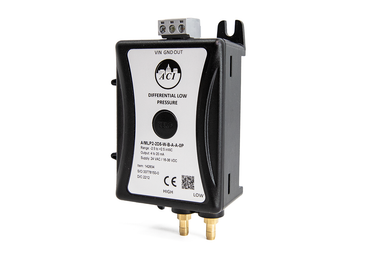

The MLP2 Series Low Dierential Pressure transmitters are designed for use in OEM or high density panel mounting applications. Key installation features include an integral 35 mm Din rail mounting foot, vertically orientated wiring and pressure connections, and a pushbutton zero function conveniently located on the front cover. The MLP2 incorporates a high accuracy, piezoresistive, silicon sensing element which senses differential pressure and provides a linear 4 to 20 mA or DC voltage output equal to the specied pressure range. This technology reduces warmup shift while also reducing the effect of package stress for increased long term stability. In addition, the unit contains a de-pluggable terminal block that can be removed for ease of installation. This unit must be ordered with a single uni or bi-directional pressure range and output signal from +/- 0.1 of water column to a maximum pressure of +/- 40 of water column depending on your application. All MLP2 Series pressure transmitters are calibrated using NIST Certified equipment. Optional 3 or 5 point NIST Certificates are available and must be specifed when placing your order. Applications: Building and Duct Static Pressure, Filter Monitoring, Air Flow Measurement, Process Control, Roof Top Units, Air Handlers, Clean Rooms, Isolation Rooms, Data Centers.

The MLP2 Series Low Differential Pressure transmitters are covered by ACI's Five (5) Year Limited Warranty. The warranty can be found in the front of ACI's Sensors & Transmitters catalog, as well as on ACI's website, Www.Workaci.Com.
