Documents: A/GP(0-100G)-20-P-N4

Datasheet Installation Instructions More Info

A/GP(0-100G)-20-P-N4 | 0-100PSIG/4-20MA/1/4"NPT,NEMA4 | [Requires Harness] | ACI

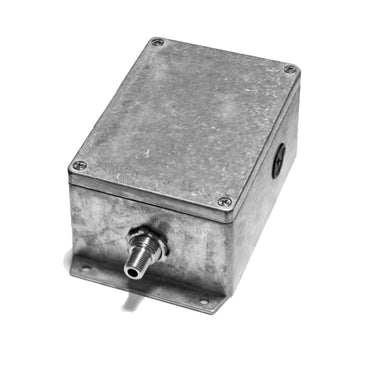

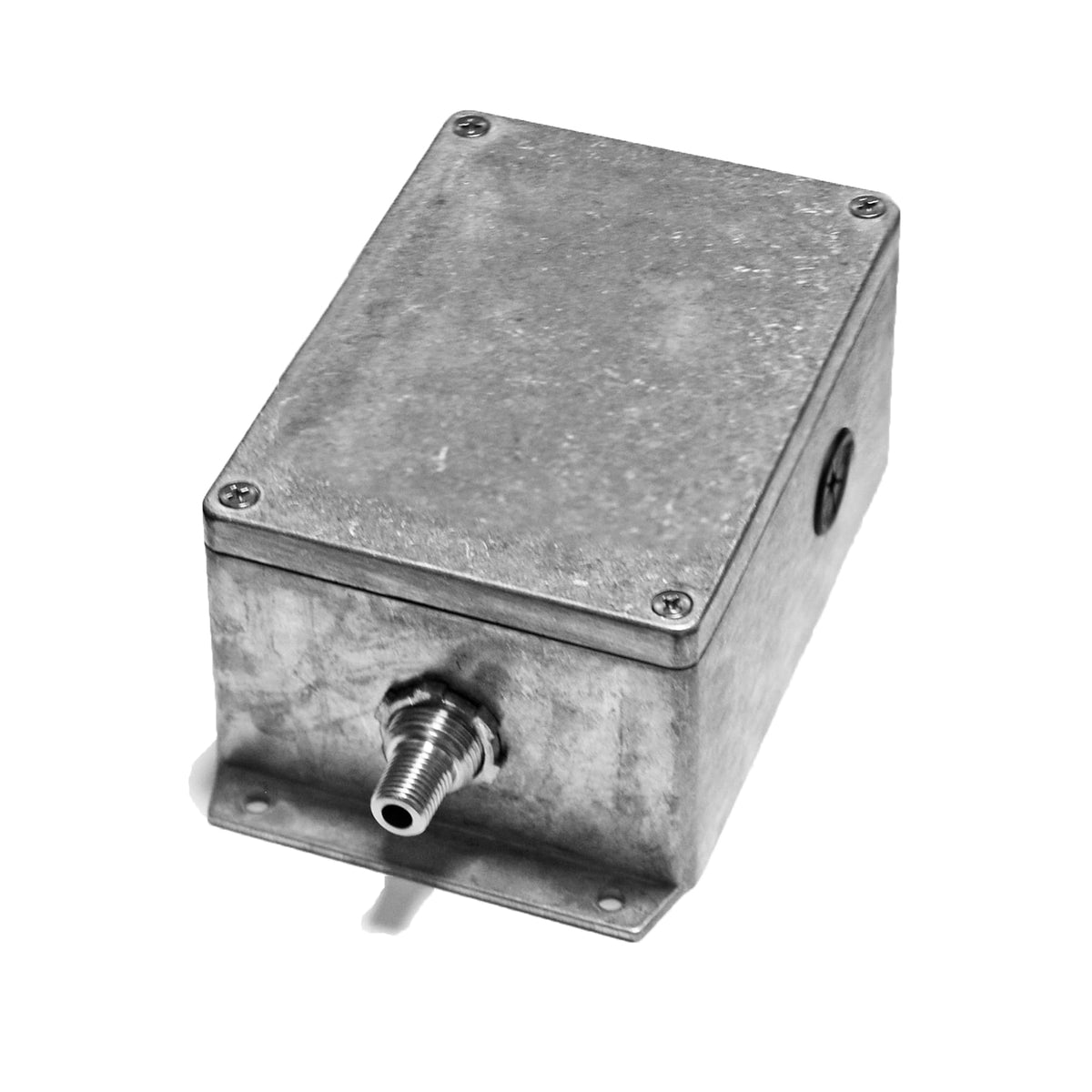

Gage Pressure Transducer with Packard Connector and NEMA 4, 0 to 100 psig, 4-20mA

Brand: ACISKU: A/GP(0-100G)-20-P-N4

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to A/GP(0-100G)-20-P-N4

Jump to: Overview & Specifications Reviews

Overview Details for A/GP(0-100G)-20-P-N4

0-100PSIG/4-20MA/1/4"NPT,NEMA4

The GP-NEMA 4 Series is designed to provide excellent accuracy and reliability in commercial, industrial, and process control applications where high performance and a NEMA 4 weatherproof enclosure is required. The bulk micro-machined transducer features a stainless steel diaphragm with welded construction that contains no O-rings, which makes them compatible with any gas or liquid compatible with 304L stainless steel. Some of the compatible gases and liquids include refrigerants, glycol, motor oil, diesel, hydraulic fluid, brake fluid, water, waste water, Hydrogen, Nitrogen and air. The GP-NEMA 4 Series transducers include a optional NEMA 4 rated, weatherproof aluminum enclosure and an optional NIST Calibration Certificate. Accessory items such as pressure snubbers and pigtail syphons are available to protect the transducers from line pressure surges and extreme operating temperatures. For
more information regarding the temperature and pressure ratings of the Pigtail Syphons, please see the Pigtail Syphon data sheet.

Applications: Refrigeration, Fuel Cells, Pumps, Hydraulics, Compressors, Robotics, Pneumatics, Agriculture, Spraying Systems, Process Control, Flow, Hydrogen Storage, Chiller, Water & Boilers

The GP-NEMA 4 Series is covered by ACI's Two (2) Year Limited Warranty. The warranty can be found in the front of ACI's Sensors & Transmitters catalog, as well as on ACI's website, www.workaci.com.
