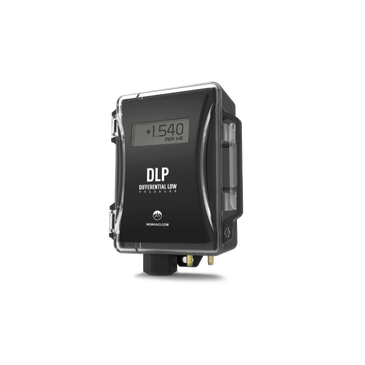

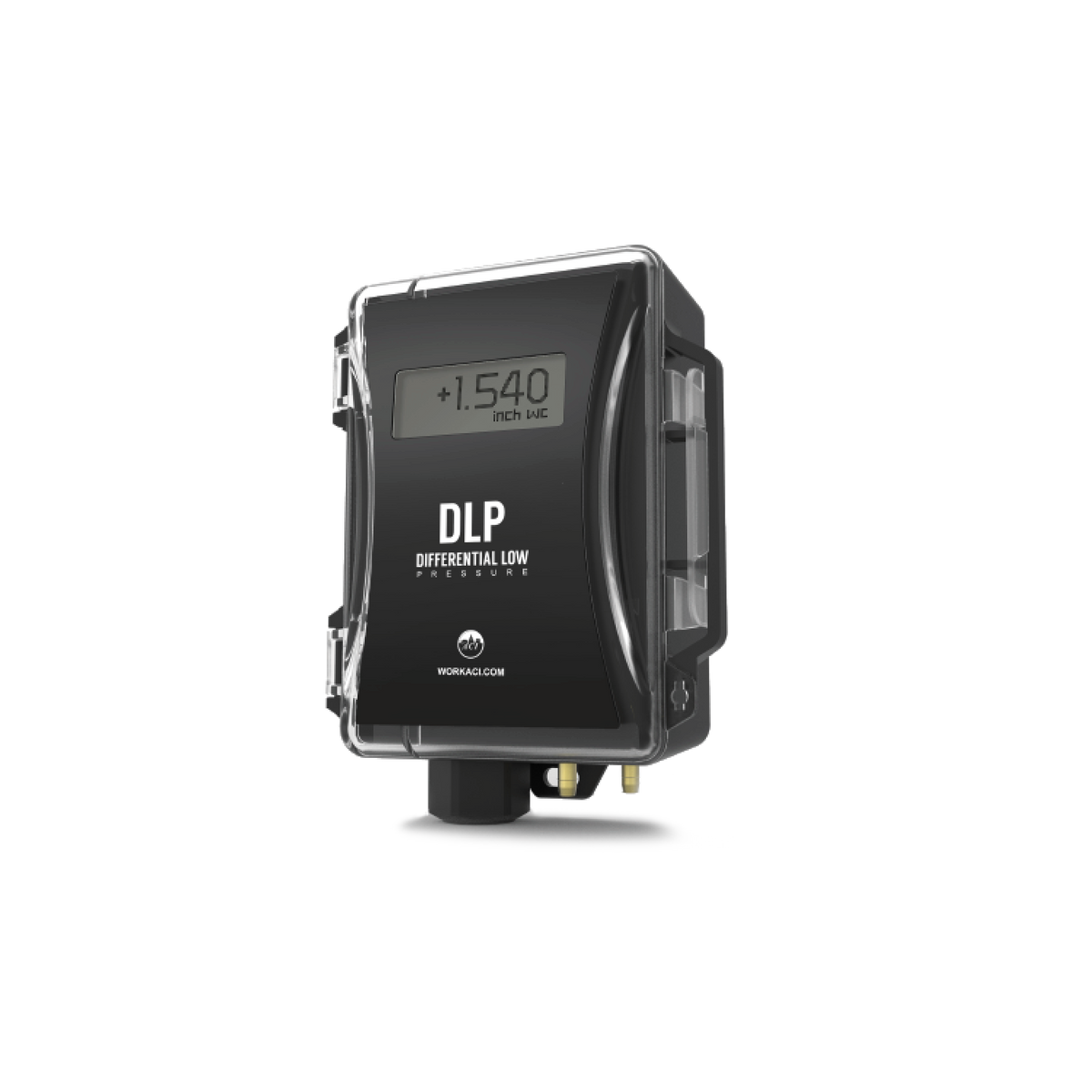

A/DLP-010-W-U-D-A-0 | Differential Pressure Sensor Transducer | 0-10" | +/- 1" to 10" w.c. | LCD | ACI

Differential Pressure, (0.5% Acc), 1, 2, 5, 10 inWC (Default), LCD, Unidirectional (Default), Bidirectional (Selectable)

Brand: ACISKU: A/DLP-010-W-U-D-A-0

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to A/DLP-010-W-U-D-A-0

Jump to: Overview & Specifications Reviews

Overview Details for A/DLP-010-W-U-D-A-0

A/DLP-010-W-U-D-A-0 | Differential Pressure Sensor Transducer | 0-10" | +/- 1" to 10" w.c. | LCD

Description

The DLP Series is based on a piezoresistive, silicon sensing element which senses Dierential Pressure and provides an analog output. The hinged cover on the DLP can be easily opened using the integrated locking tab on the side of the enclosure. This allows for easy access to the zero function and eld selectable ranges and outputs. The DLP Series also includes an optional, ve digit LCD for installation and monitoring support. Field selectable analog outputs include 0-5 and 0-10 VDC, or 4-20 mA which correlate to a uni or bi-directional pressure range from 0-0.1” up to 0-40” of water column, depending on your model selection. Each unit has up to 8 eld selectable, uni or bi-directional ranges. Options include a Pitot Tube or Din Rail Clip.

Applications

Building and Duct Static Pressure
Filter Monitoring
Air Flow Measurement
and Process Control

Specifications

Item Number	A/DLP-010-W-U-D-A-0
Brand	ACI
Direction	Bidirectional
Direction	Unidirectional
Pressure Output Signal	0-10 VDC
Pressure Output Signal	0-5 VDC
Pressure Output Signal	4-20 mA
Pressure Range	+/- 1" w.c.
Pressure Range	+/- 10" w.c.
Pressure Range	+/- 2" w.c.
Pressure Range	+/- 5" w.c.
Pressure Range	0-1"
Pressure Range	10"
Pressure Range	2"
Pressure Range	5"
Pressure Sensor Type	Differential
Pressure Sensor W LCD	Yes
Sensor	Pressure
