A/DLP-003-W-U-N-B-0-C-0P-S | Differential Low Pressure, 3 W, Unidirectional, No Display, 0.25% Accuracy, No Pitot Tube, 0-10VDC Output, No Nist, Standard | ACI

Differential Low Pressure, 3 inWC, Unidirectional, No Display, 0.25% Accuracy, No Pitot Tube, 0-10VDC Output, No NIST, Standard

Brand: ACISKU: A/DLP-003-W-U-N-B-0-C-0P-S
ACI | A/DLP-003-W-U-N-B-0-C-0P-S

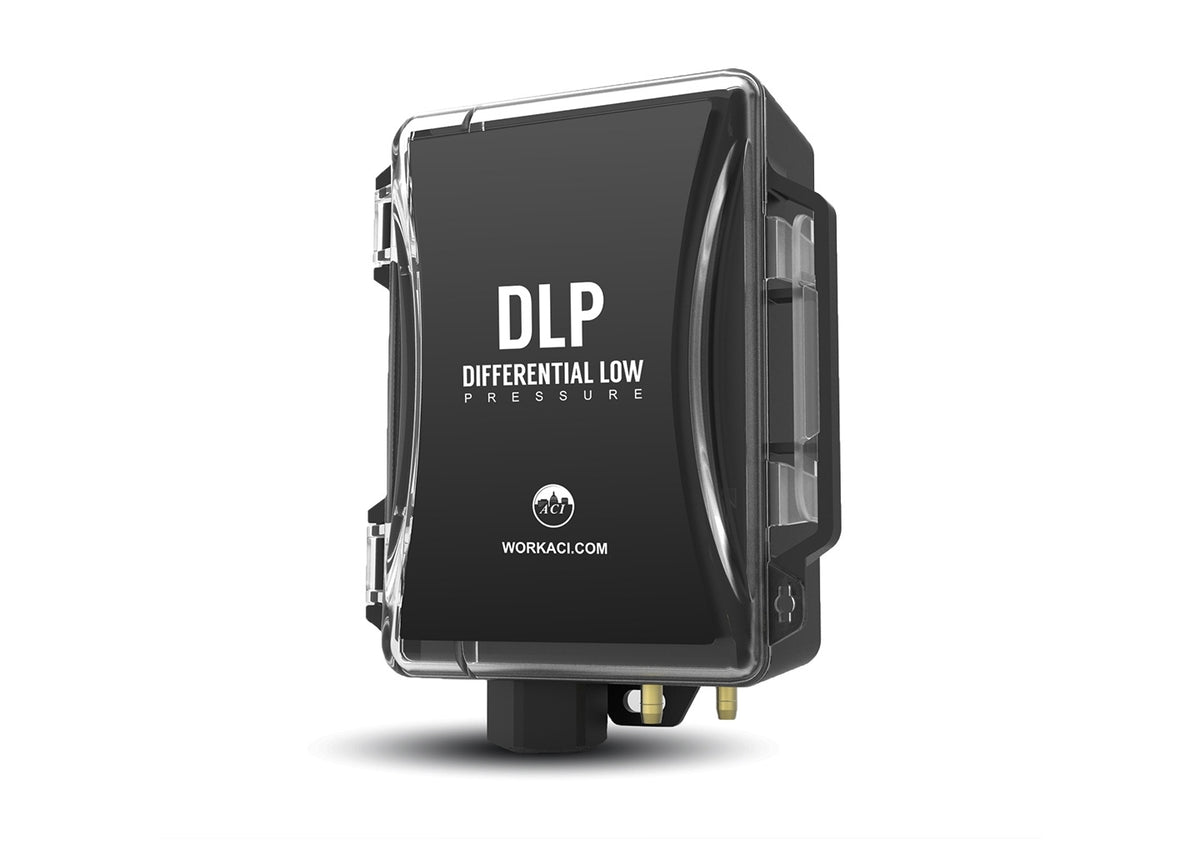

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to A/DLP-003-W-U-N-B-0-C-0P-S

Overview Details for A/DLP-003-W-U-N-B-0-C-0P-S

Differential Low Pressure, 3 W, Unidirectional, No Display, 0.25% Accuracy, No Pitot Tube, 0-10VDC Output, No Nist, Standard

The DLP Series is based on a piezoresistive, silicon sensing element which senses Differential Pressure and provides an analog output. The hinged cover on the DLP can be easily opened using the integrated locking tab on the side of the enclosure. This allows for easy access to the zero function and ­field selectable ranges and outputs. The DLP Series also includes an optional, ­five-digit LCD for installation and monitoring support. Field selectable analog outputs include 0-5 and 0-10 VDC, or 4-20 mA which correlate to a specifi­c uni or bi-directional pressure range from 0-0.1 up to 0-40 of water column, depending on your model selection. Each unit must be ordered with the specific pressure range needed to meet desired application requirements. Options include a Pitot Tube or Din Rail Clip.

Applications: Building and Duct Static Pressure, Filter Monitoring, Air Flow Measurement, and Process Control

The DLP Series is covered by ACI's Five (5) Year Limited Warranty. The warranty can be found in the front of ACI's Sensors & Transmitters catalog, as well as on ACI's website, www.workaci.com.

Specifications

Item Number A/DLP-003-W-U-N-B-0-C-0P-S
Brand ACI
