A/DLP-001-W-U-D-A-3 | Differential Pressure Sensor Transducer | 0-1" | +/- 0.1" to 1" w.c. | Pitot Tube | Din Rail | LCD | ACI

Differential Pressure, (0.5% Acc), 0.1, 0.2, 0.5, 1 inWC (Default) , LCD, Unidirectional (Default), Bidirectional (Selectable), Pitot Tube & DIN Rail Clip

Brand: ACISKU: A/DLP-001-W-U-D-A-3

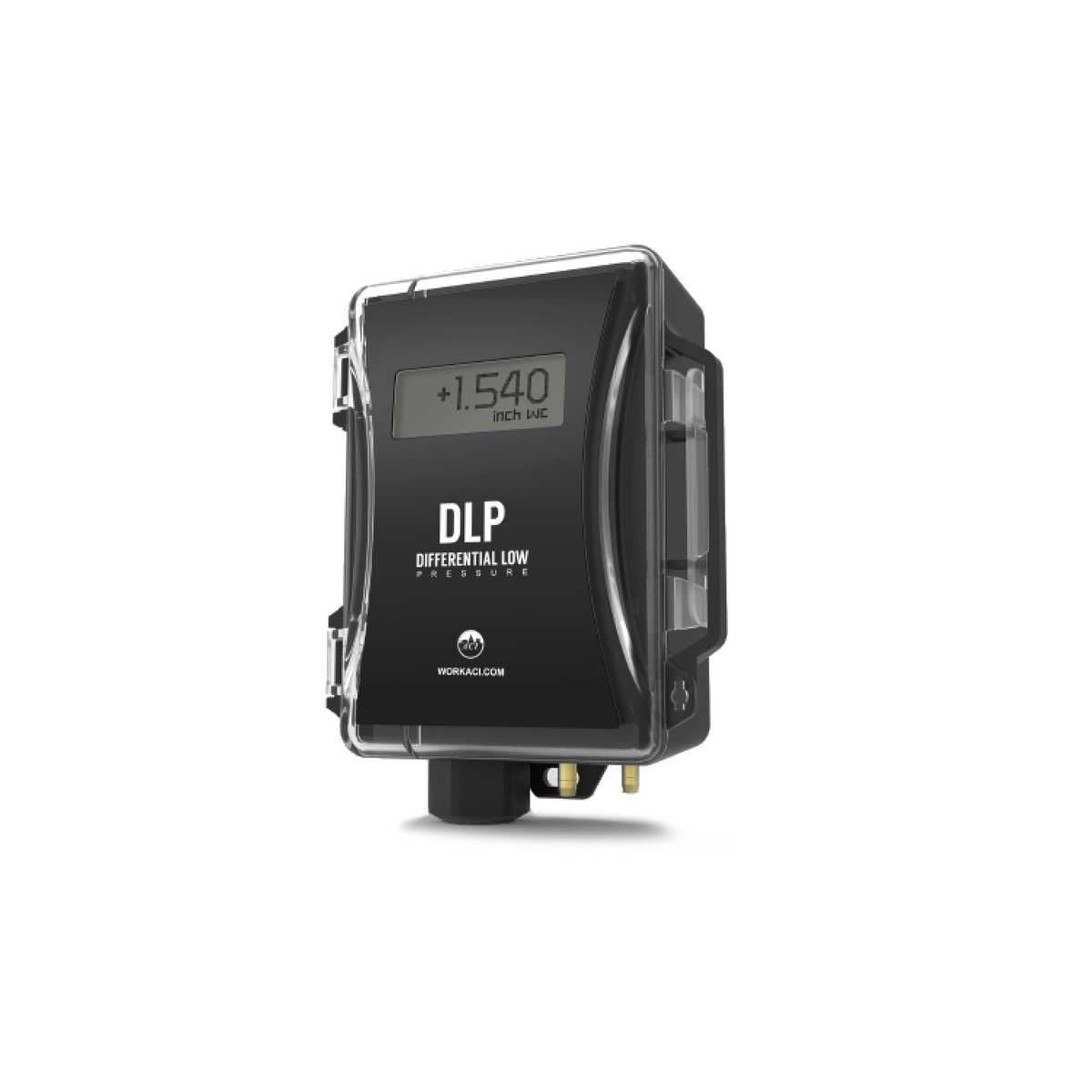

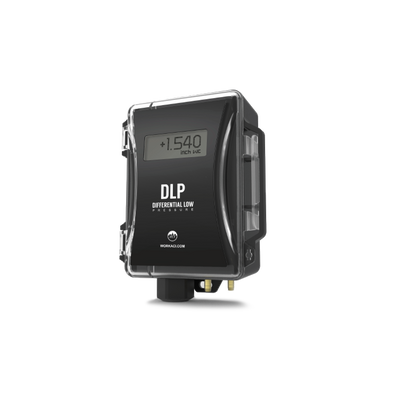

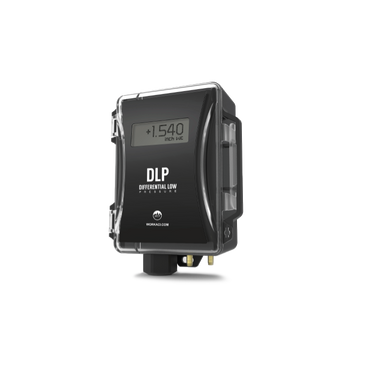

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to A/DLP-001-W-U-D-A-3

Jump to: Overview & Specifications Reviews

Overview Details for A/DLP-001-W-U-D-A-3

Description

The DLP Series is based on a piezoresistive, silicon sensing element which senses Differential Pressure and provides an analog output. The hinged cover on the DLP can be easily opened using the integrated locking tab on the side of the enclosure. This allows for easy access to the zero function and field selectable ranges and outputs. The DLP Series also includes an optional, five digit LCD for installation and monitoring support. Field selectable analog outputs include 0-5 and 0-10 VDC, or 4-20 mA which correlate to a uni or bi-directional pressure range from 0-0.1” up to 0-40” of water column, depending on your model selection. Each unit has up to 8 field selectable, uni or bi-directional ranges. Options include a Pitot Tube or Din Rail Clip.

Applications

Building and Duct Static Pressure, Filter Monitoring, Air Flow Measurement, and Process Control

Specifications

Item Number	A/DLP-001-W-U-D-A-3
Brand	ACI
Direction	Bidirectional
Direction	Unidirectional
Pressure Output Signal	0-10 VDC
Pressure Output Signal	0-5 VDC
Pressure Output Signal	4-20 mA
Pressure Range	+/- 0.1" w.c.
Pressure Range	+/- 0.2" w.c.
Pressure Range	+/- 0.5" w.c.
Pressure Range	+/- 1" w.c.
Pressure Range	0-0.1"
Pressure Range	0.2"
Pressure Range	0.5"
Pressure Range	1"
Pressure Sensor Type	Differential
Pressure Sensor W LCD	Yes
Sensor	Pressure
With Pitot Tube	Yes
