A/DLP-001-W-U-D-A-0 | Differential Pressure Sensor Transducer | 0-1" | +/- 0.1" to 1" w.c. | LCD | ACI
Differential Pressure, (0.5% Acc), 0.1, 0.2, 0.5, 1 inWC (Default) , LCD, Unidirectional (Default), Bidirectional (Selectable)
Documents and manuals
ACI A/DLP-001-W-U-D-A-0 Documents
Overview
Details for A/DLP-001-W-U-D-A-0
A/DLP-001-W-U-D-A-0 | Differential Pressure Sensor Transducer | 0-1" | +/- 0.1" to 1" w.c. | LCD

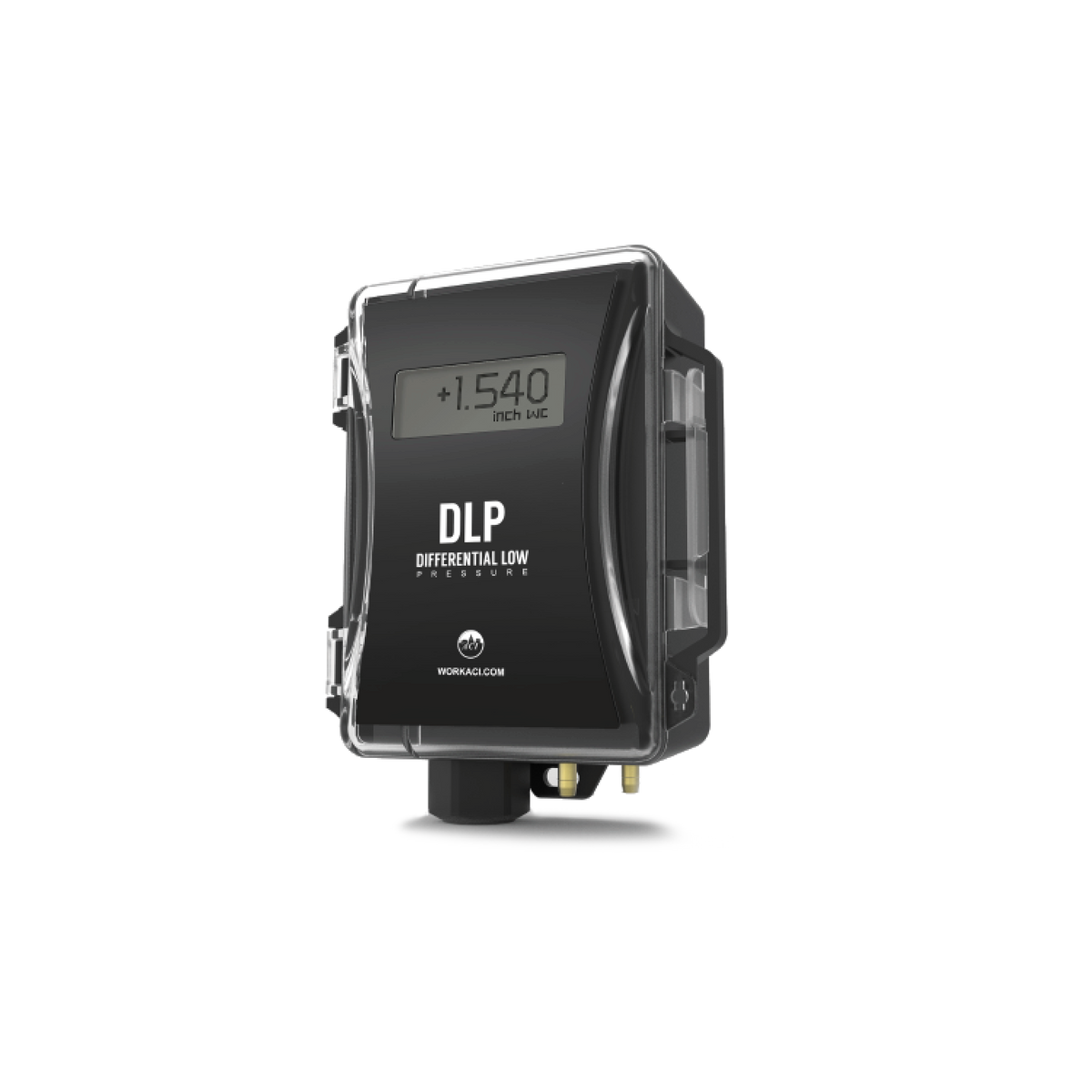

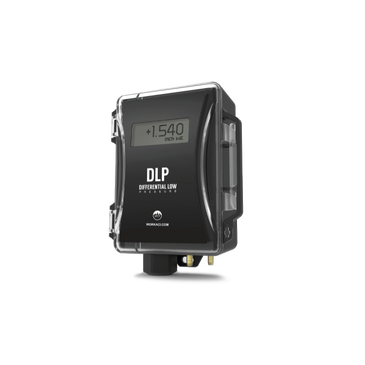

The DLP Series is based on a piezoresistive, silicon sensing element which senses Differential Pressure and provides an analog output. The hinged cover on the DLP can be easily opened using the integrated locking tab on the side of the enclosure. This allows for easy access to the zero function and field selectable ranges and outputs. The DLP Series also includes an optional, five-digit LCD for installation and monitoring support. Field selectable analog outputs include 0-5 and 0-10 VDC, or 4-20 mA which correlate to a specific uni or bi-directional pressure range from 0-0.1 up to 0-40 of water column, depending on your model selection. Each unit must be ordered with the specific pressure range needed to meet desired application requirements. Options include a Pitot Tube or Din Rail Clip.
Applications: Building and Duct Static Pressure, Filter Monitoring, Air Flow Measurement, and Process Control
The DLP Series is covered by ACI's Five (5) Year Limited Warranty. The warranty can be found in the front of ACI's Sensors & Transmitters catalog, as well as on ACI's website, Www.Workaci.Com.
Specifications
Item Number | A/DLP-001-W-U-D-A-0 |
Brand | ACI |
Direction | Bidirectional |
Direction | Unidirectional |
Pressure Output Signal | 0-10 VDC |
Pressure Output Signal | 0-5 VDC |
Pressure Output Signal | 4-20 mA |
Pressure Range | +/- 0.1" w.c. |
Pressure Range | +/- 0.2" w.c. |
Pressure Range | +/- 0.5" w.c. |
Pressure Range | +/- 1" w.c. |
Pressure Range | 0-0.1" |
Pressure Range | 0.2" |
Pressure Range | 0.5" |
Pressure Range | 1" |
Pressure Sensor Type | Differential |
Pressure Sensor W LCD | Yes |
Sensor | Pressure |
