A/CTA2-250 | Current Sensor (Solid Core) | Loop Powered | 4-20 mA Average Output | Jumper Selectable Range: 0-100 | 0-200 | 0-250A | ACI

Analog Current Sensor, 4-20mA, DIN Rail, Solid Core, 0-100, 0-200, 0-250 Amp (Default)

ACI | A/CTA2-250

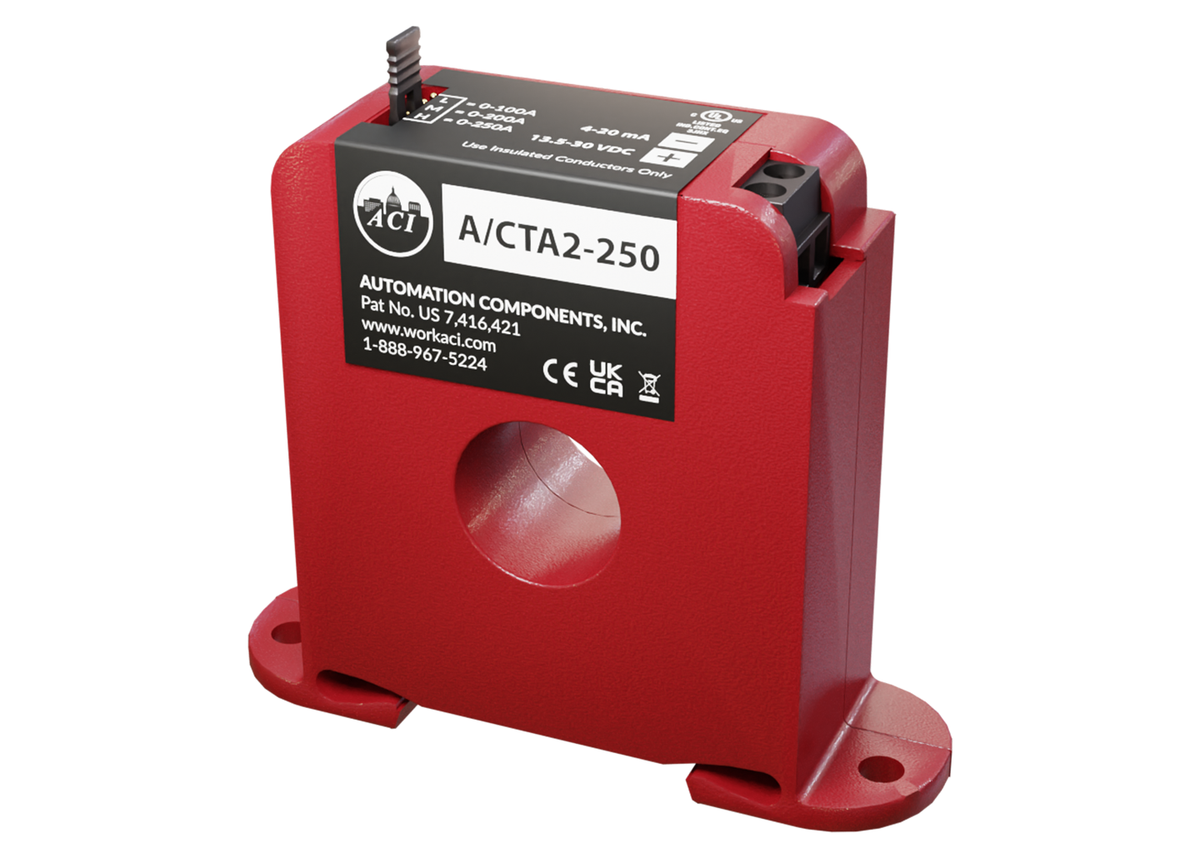

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to A/CTA2-250

Documents and manuals

ACI A/CTA2-250 Documents

Overview

Details for A/CTA2-250

A/CTA2-250 | Current Sensor (Solid Core) | Loop Powered | 4-20 mA Average Output | Jumper Selectable Range: 0-100 | 0-200 | 0-250A

The 4-20 mA Output Analog Current Sensors are designed for use in any AC current monitoring application in which you are looking to monitor a particular piece of equipment. The Average style current sensors should be used in applications where the Sinusoidal waveform has no distortion or noise on the conductor being monitored. Applications may include monitoring a resistive type load such as an incandescent light bulb, heating element as well as any single speed linear load. Note that the True RMS sensors are able to be used in all applications since the True RMS current sensors provide the best overall accuracy and should be used in applications which includes Variable Frequency Drives, Switching Power Supplies, Computers and Data Centers, Electronic Ballasts, SCRs, and Variable Speed Loads. For currents monitored above 250 Amps, the CTA2-5 and SCTA2-5 are ideal for use with a step down Ratio:5A Output CT (Current Transformer) in stepping down current in a monitored conductor to a proportional 0 to 5A output signal. The current sensors are available in both solid and split-core versions which also includes a Patented (Pat. No. US 7,416,421) 35 mm Din Rail mounting foot for easy installation in panel mount applications. The solid-core versions are a great choice for new installations or OEM applications in which cost sensitivity, lower trip points and environmental issues like dust and moisture may be of concern. The split-core version of the current sensors work great in retrot applications and for use on service technicians vehicles since one or two parts will work in most applications and can be easily installed without disconnecting any wires. Applications: Load Trending, Basic Power Monitoring, Electronic Ballasts, Computers/Data Centers, Industrial, Variable Speed Loads, Pumps, Compressors, Fans, Preventative Maintenance, LEED, Project Justication (ROI) Process Control, Solid State Environments (SCRs) The 4-20 mA Output Current Sensors are covered by ACI's Five (5) Year Limited Warranty. The warranty can be found in the front of ACI's Sensors & Transmitters catalog, as well as on ACI's website, www.workaci.com.

Specifications

Item Number A/CTA2-250
Brand ACI
Current Core Solid Core
Sensor Current Sensor
