A/CP-SP-NIST | NIST CONFIGURATOR | ACI

10, 000 Ohm Thermistor (Type II), Wall Plate, Stainless Steel, NIST Cert

Brand: ACISKU: A/CP-SP-NIST

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to A/CP-SP-NIST

Jump to: Overview & Specifications Reviews

Overview Details for A/CP-SP-NIST

NIST CONFIGURATOR

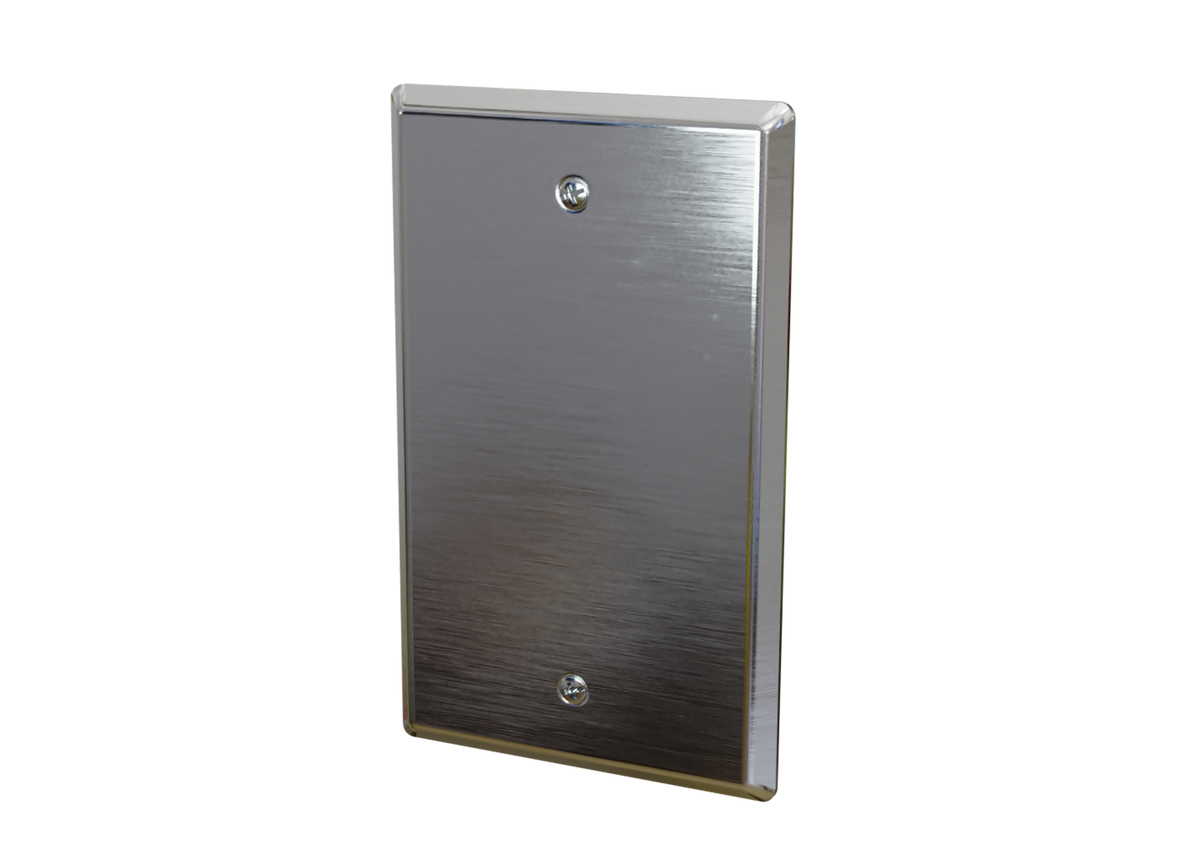

The ACI Thermistor Wall Plate Series features a decorative, single gang brushed Stainless Steel or Smooth Satin Finished Anodized Aluminum wall plate with two, 14 inch 22 AWG Etched Teflon colored lead wires to differentiate the different NTC sensor types. The sensors in this series are manufactured using ACIs proven double encapsulation process to eliminate the effects of moisture upon the sensors and to increase the thermal response times using our high quality, thermally conductive epoxy. A foam pad is included to insulate the sensor from thermal drafts within the wall, since they are designed to be mounted over a standard single gang junction box or directly over a hole in the wall with the use of drywall anchors to monitor ambient air temperatures in a space. Tamper Proof mounting screws are available upon request. Applications: Space Temperature Sensing, Decorative Wall Plate Applications, Tamper Proof Applications, Schools, Gymnasiums
