A/CP-S10-4X-NIST | 10,000 Ohm Thermistor (Type II), Strap On, 10" Strap, NEMA 4X Enclosure, NIST cert | ACI

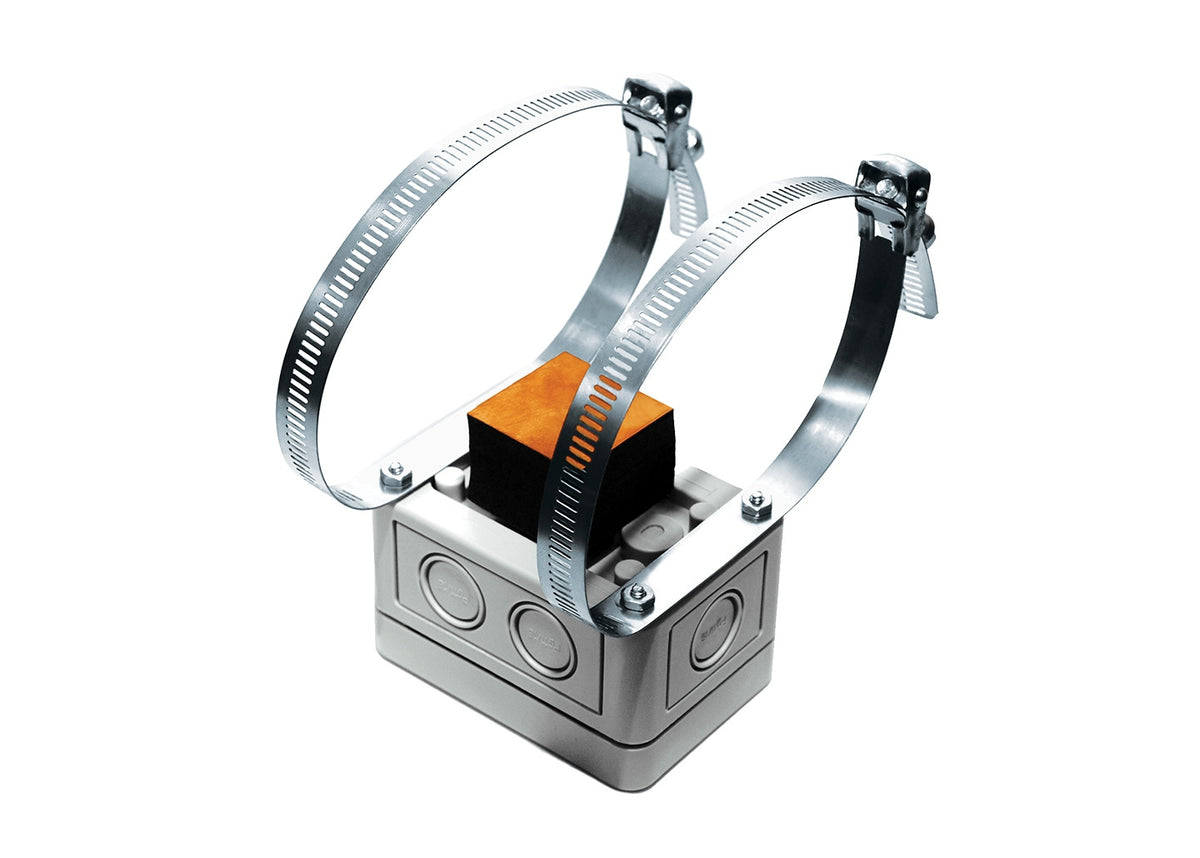

10,000 Ohm Thermistor (Type II), Strap On, 10" Strap, NEMA 4X Enclosure, NIST cert

The ACI Thermistor Strap-On Series features a 1.5 square copper plate with the sensor encapsulated to the back side of the plate to improve the thermal conductivity between the pipe and the sensor when an Immersion style sensor cant be inserted into the pipe. Each sensor has two, 14 inch 22 AWG Etched Teflon colored lead wires to differentiate the different sensor types. The sensors in this series are manufactured using ACIs proven double encapsulation process to eliminate the effects of moisture upon the sensors as well as to improve the thermal response times using our high quality, thermally conductive epoxy. The Strap-On Series sensors can be used to monitor pipe sizes from 1 ¼ to 10 in diameter. For best accuracy and increased thermal conduction between the pipe and the sensor, ACI recommends cleaning the pipe before applying thermal grease as well as to insulate the sensor from the effects of the ambient air. Optional weather proof enclosure and NIST certificates are available upon request.

Applications: Cold Water Systems, Hot Water Systems, Retrot, Hydronic Heating Systems, Chillers.

The ACI Thermistor Strap-On Series is covered by ACI's Five (5) Year Limited Warranty. The warranty can be found in the front of ACI's Sensors & Transmitters catalog, as well as on ACI's website, Www.Workaci.Com.
