A/BALCO-IM-4”-GD | 1,000 Ohm Balco RTD, Immersion, Machined Well, 4", Galvanized Enclosure | ACI

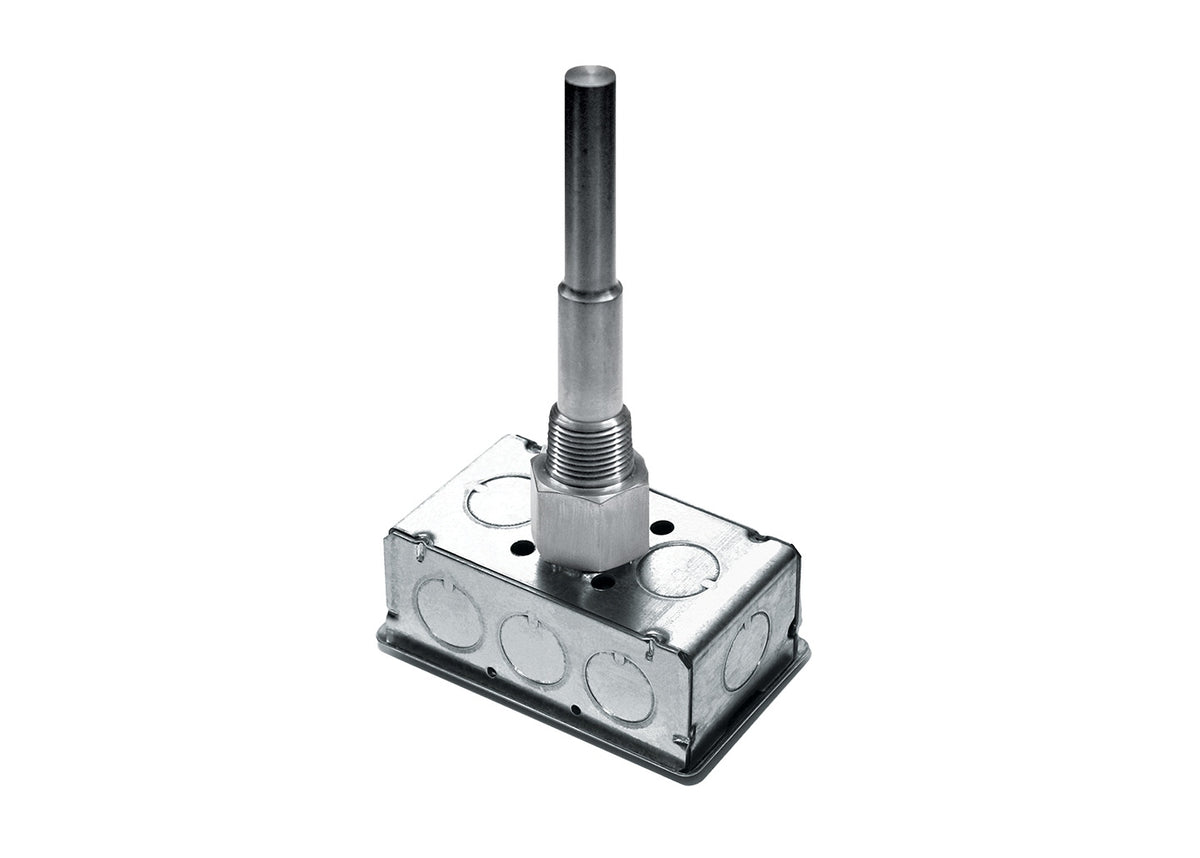

1,000 Ohm Balco RTD, Immersion, Machined Well, 4", Galvanized Enclosure

The ACI Balco Immersion Series features a ¼ diameter stainless steel probe with two, 14 inch 22 AWG Etched Teflon colored lead wires to differentiate the many different sensor types. The sensors in this series are manufactured using ACIs proven double encapsulation process to eliminate the effects of moisture upon the sensors and to increase the thermal response times using our high quality, thermally conductive epoxy. The immersion sensors come standard with a welded thermowell -I version but can also be ordered without the thermowell -INW version. The -INW Version includes a standard ½ NPS (National Pipe Straight) process thread to be used with an optional machined thermowell or in an existing thermowell application. This series can be ordered with optional NEMA rated weather proof enclosures and NIST Certificates as referenced on the back of the product data sheet. Applications: Chilled Water Systems, Hot Water Systems, Boilers, Pumps, Compressor, Chillers
