A/ASCSX2 | Current Switch (Split Core) | N/C 0-250A | Adjustable Trip Point: 1.5 - 220A | Output Switch Rating: 0.20A @ 200 VAC/VDC | ACI
Adjustable Current Switch, DIN Rail, Split Core, NC, 1.5 to 220A Trip Point, 0 to 250A Range
Documents and manuals
ACI A/ASCSX2 Documents
Overview
Details for A/ASCSX2

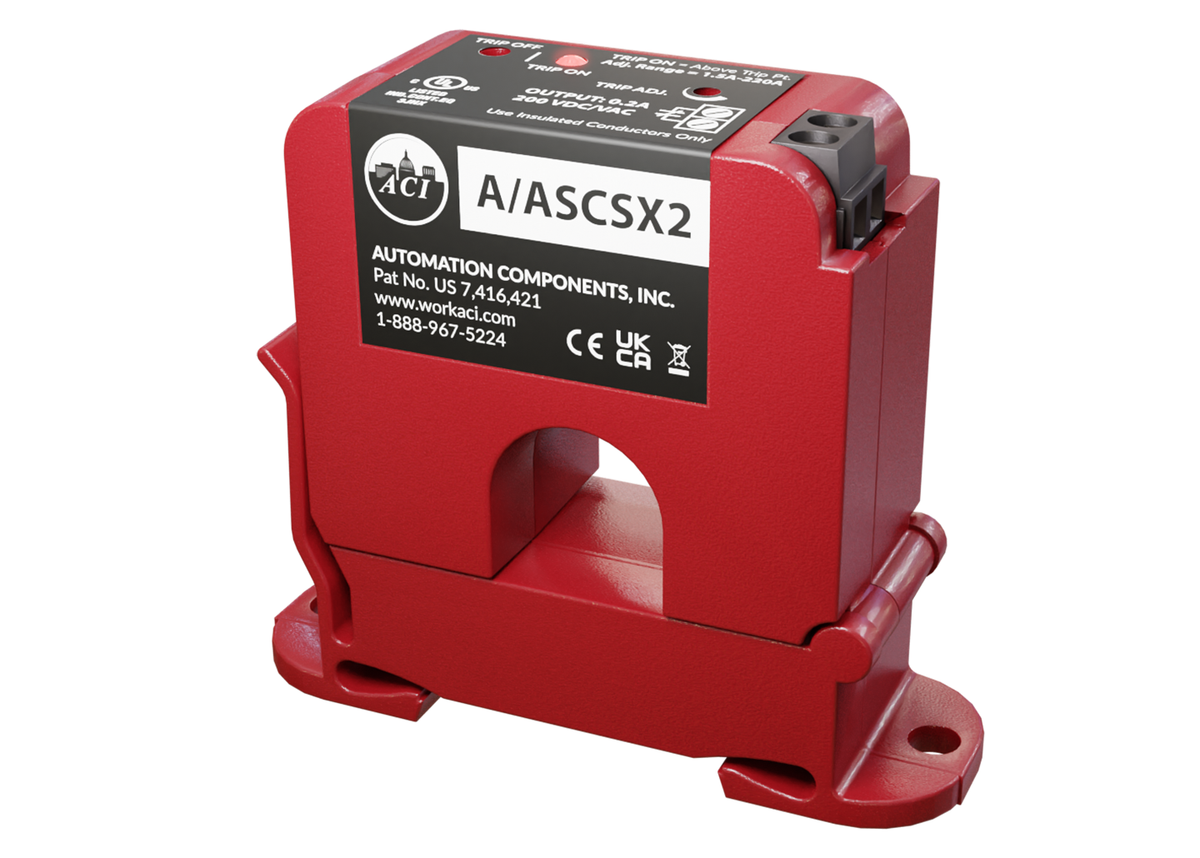

A/ASCSX2 | Current Switch (Split Core) | N/C 0-250A | Adjustable Trip Point: 1.5 - 220A | Output Switch Rating: 0.20A @ 200 VAC/VDC
The Adjustable Current Switches are designed for use in any AC current monitoring application in which you are looking to monitor a particular piece of equipment for equipment failure, preventative maintenance, status, and electrical load status. The current switches should be installed on the line side of the power to the electrical equipment. The current switches are available in both solid and split-core versions which also includes a Patented 35 mm Din Rail mounting foot for easy installation in panel mount applications. The solid-core versions are a great choice for new installations or OEM applications in which cost sensitivity, lower trip points and environmental issues may be of concern. The split-core version of the current switches work great in retrot applications and for use on service technicians vehicles since one part will work in most applications and can be easily installed without disconnecting any wires. The adjustable current switches can be used to determine the run time of your equipment as well as basic load trending applications where you want to know when how long your piece of equipment runs when logging the contact closures on your building management system or PLC. Applications: Overload Conditions, Underload Conditions, Normal Operating Conditions, Broken Belts, Belt Slippage, Locked Rotors, Equipment Failure, Fans, Pumps, Compressors, Motors, Ovens, Industrial Equipment, Lighting Status and Usage, Electrical Load Status, Local Alarms (Strobes and Audible Alarms), Preventative Maintenance Scheduling The Adjustable Current Switches are covered by ACI's Five (5) Year Limited Warranty. The warranty can be found in the front of ACI's Sensors & Transmitters catalog, as well as on ACI's website, www.workaci.com.
Specifications
Item Number | A/ASCSX2 |
Brand | ACI |
Current Core | Split Core |
Current Switch Type | Solid State |
Sensor | Current Switch |
