Documents: A/AN-RS-LCD-F-A01-C5
A/AN-RS-LCD-F-A01-C5 | 10,000 Ohm Thermistor (Type III), Room (R), Setpoint, LCD, 0-100K, Cool/Warm, Deg F | ACI
10, 000 Ohm Thermistor (Type III), Room (R), Setpoint 0 to 100K Ohms, LCD, Cool/Warm Sticker
Overview Details for A/AN-RS-LCD-F-A01-C5
10,000 Ohm Thermistor (Type III), Room (R), Setpoint, LCD, 0-100K, Cool/Warm, Deg F

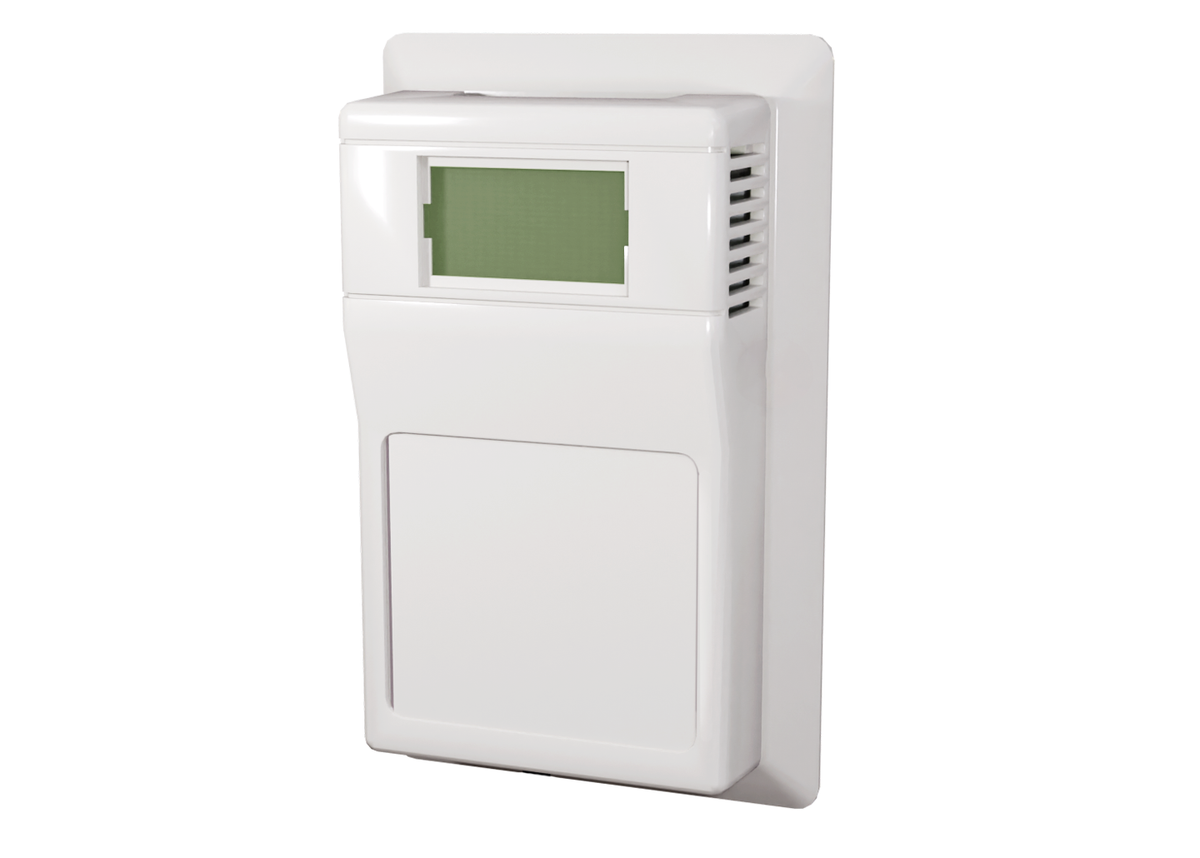

The ACI Thermistor Room Series combines option flexibility (setpoint, override, communication jacks) with attractive styling in our -R2 or -R style enclosures which include four-way air flow design too minimize self-heating to the sensor. ACI Room enclosures are offered in a White -R2 or Beige -R color depending on the enclosure style. These units are designed to be mounted over a single gang junction box or hole in the wall using drywall anchors. Screw terminal blocks are available for making all connections to your building management system (network). An optional 1/8 Black foam pad with pressure sensitive adhesive is available to insulate the sensor from thermal drafts within the wall or wall surface. A 1/16 Hex driver is needed to secure the cover from being easily removed.
Specifications
Item Number | A/AN-RS-LCD-F-A01-C5 |
Brand | ACI |
