A/6DI-1AO | 6 DIGITAL IN TO 1 ANALOG OUT | ACI
6 Analog/Digital Inputs to 1 Analog Output
Documents and manuals
ACI A/6DI-1AO Documents
Overview
Details for A/6DI-1AO
6 DIGITAL IN TO 1 ANALOG OUT

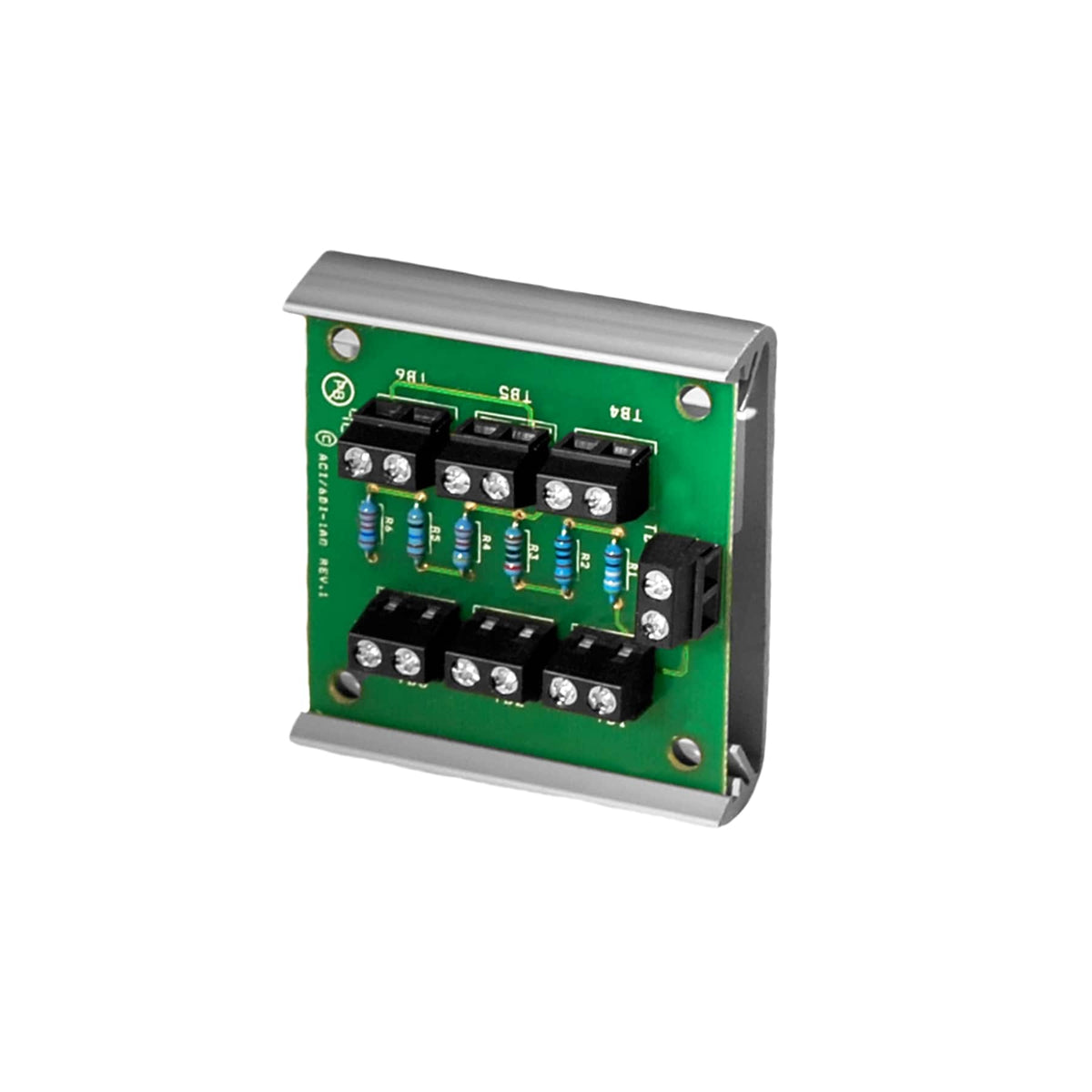

The 6DI-1AO board accepts from two to six digital inputs and converts it into a resistance output. The six inputs could be used to represent a set of contacts at a door/window being in the open or closed position. Each input needs to be monitored to indicate a specific location. The controller used with this board must accept a resistance input. A unique resistor value is defined for each location so that no combination of inputs would be duplicated in total resistance. A combination of binary inputs can be closed at any one time so that the total resistance will be unique value for each of the 64 discreet output values achieved. This unit comes with a convenient snap track for mounting. The 6DI-1AO is covered by ACI's Two (2) Year Limited Warranty.
Specifications
Item Number | A/6DI-1AO |
Brand | ACI |
