A/1K-NI-RO | 1,000 Ohm Nickel RTD, Room (R), Override, Blank logo | ACI
1, 000 Ohm Nickel RTD, Room (R), Override, Blank logo
Documents and manuals
ACI A/1K-NI-RO Documents
Overview
Details for A/1K-NI-RO
1,000 Ohm Nickel RTD, Room (R), Override, Blank logo

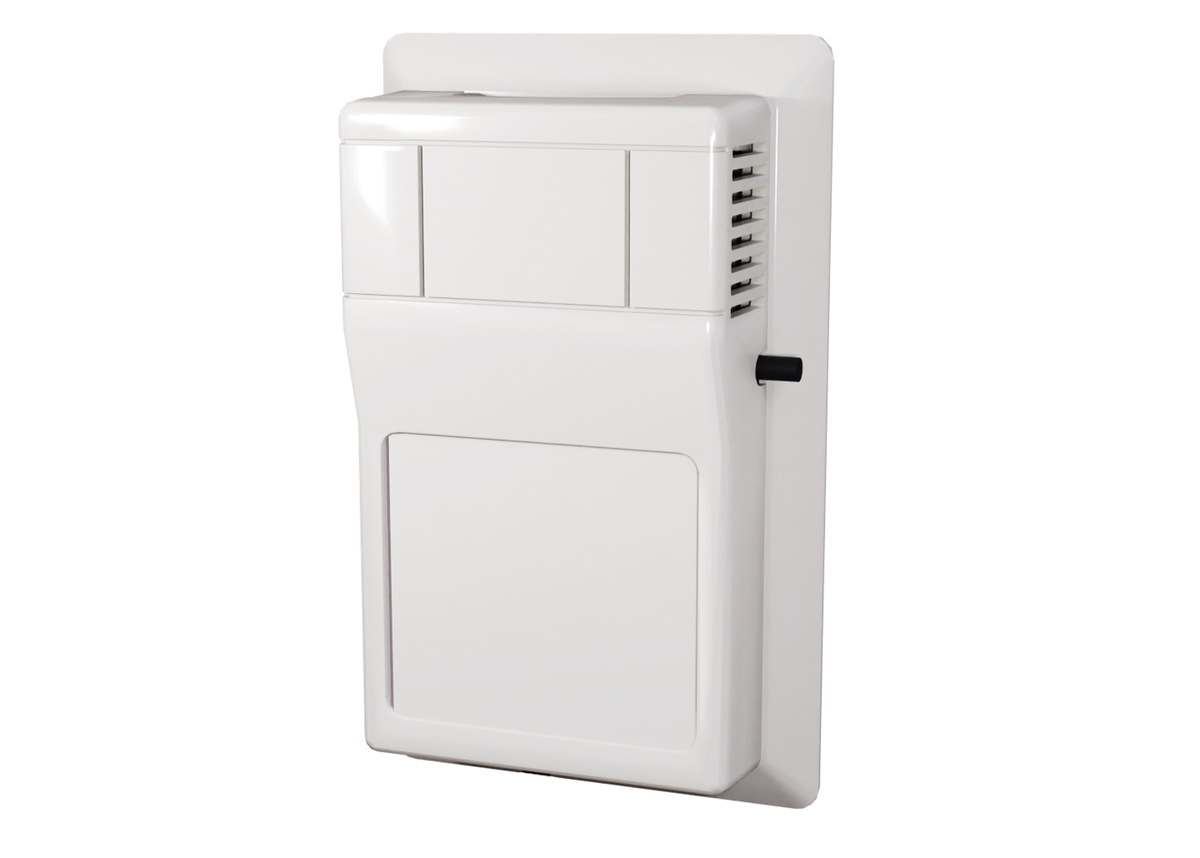

The ACI Nickel Room Series combines option flexibility with attractive styling in our -R2 style enclosures which include Four-way air flow design too minimize self-heating to the sensor. These enclosures are ordered in a White -R2 color. All units are designed to be mounted over a single gang junction box or hole in the wall with the use of drywall anchors. An optional 1/8 Black foam pad with pressure sensitive adhesive is available to insulate the sensor from thermal drafts within the wall or wall surface temperature. A 1/16 Hex driver should be used to secure the cover from being easily removed. All model numbers will be entered into our system such that you will be given a unique, six-digit Config ID Number on your order confirmation and product labels.
Applications: Space Temperature Sensing, Decorative Wall Sensor Applications, Office Buildings, Schools, Colleges, Commercial Buildings, OEM Opportunities
The ACI Nickel Room Series is covered by ACI's Five (5) Year Limited Warranty. The warranty can be found in the front of ACI's Sensors & Transmitters catalog, as well as on ACI's website, Www.Workaci.Com.
Specifications
Item Number | A/1K-NI-RO |
Brand | ACI |
