A/1K-NI-R2S-A09-G5 | 1,000 Ohm Nickel RTD, Room (R2), Setpoint 0 to 2K Ohms, Blue/Red Sticker | ACI

1,000 Ohm Nickel RTD, Room (R2), Setpoint 0 to 2K Ohms, Blue/Red Sticker

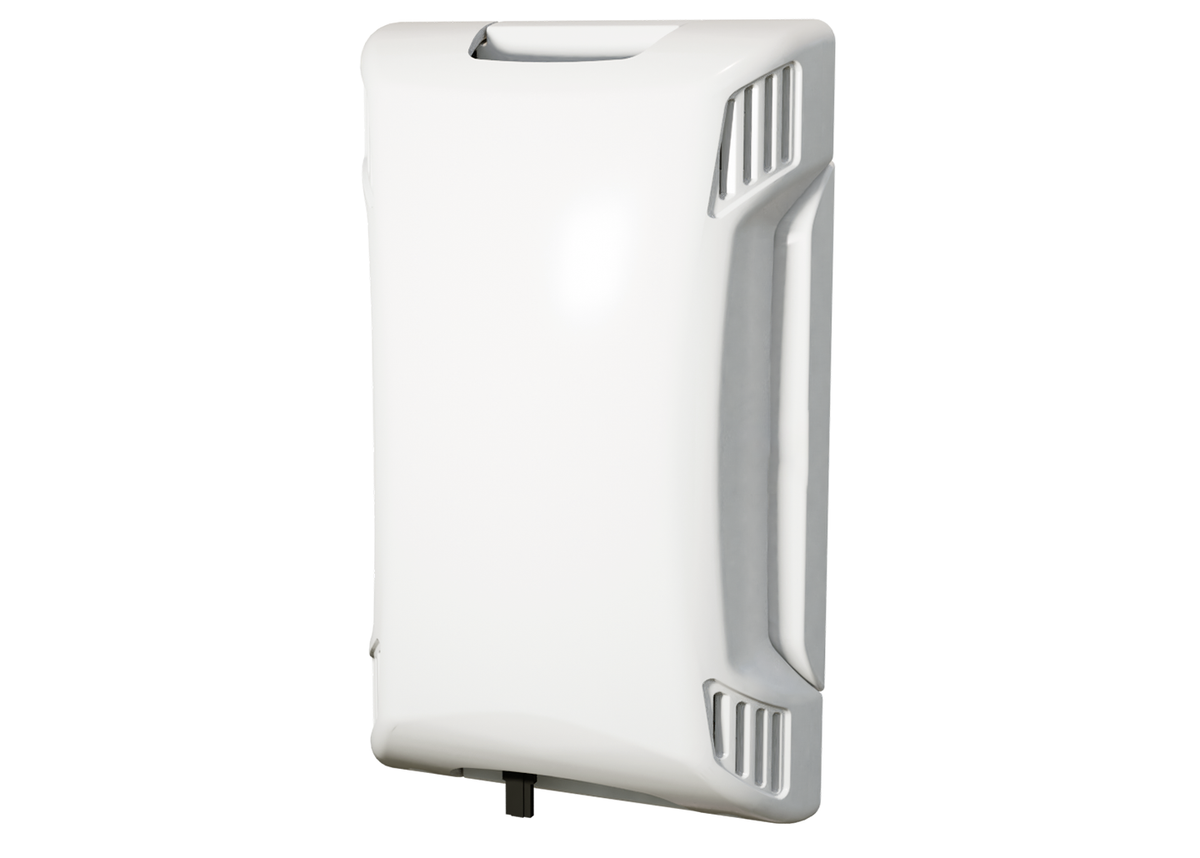

The ACI Nickel Room Series combines option flexibility with attractive styling in our -R2 style enclosures which include Four-way air flow design too minimize self-heating to the sensor. These enclosures are ordered in a White -R2 color. All units are designed to be mounted over a single gang junction box or hole in the wall with the use of drywall anchors. An optional 1/8 Black foam pad with pressure sensitive adhesive is available to insulate the sensor from thermal drafts within the wall or wall surface temperature. A 1/16 Hex driver should be used to secure the cover from being easily removed. All model numbers will be entered into our system such that you will be given a unique, six-digit Config ID Number on your order confirmation and product labels.

Applications: Space Temperature Sensing, Decorative Wall Sensor Applications, Offi­ce Buildings, Schools, Colleges, Commercial Buildings, OEM Opportunities

The ACI Nickel Room Series is covered by ACI's Five (5) Year Limited Warranty. The warranty can be found in the front of ACI's Sensors & Transmitters catalog, as well as on ACI's website, Www.Workaci.Com.
