A/1K-NI-PM-NIST | PIPE MOUNT, NIST | ACI

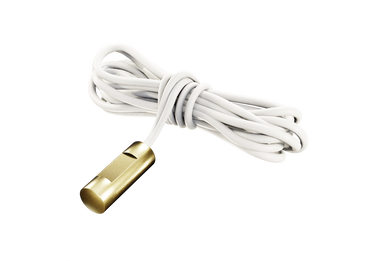

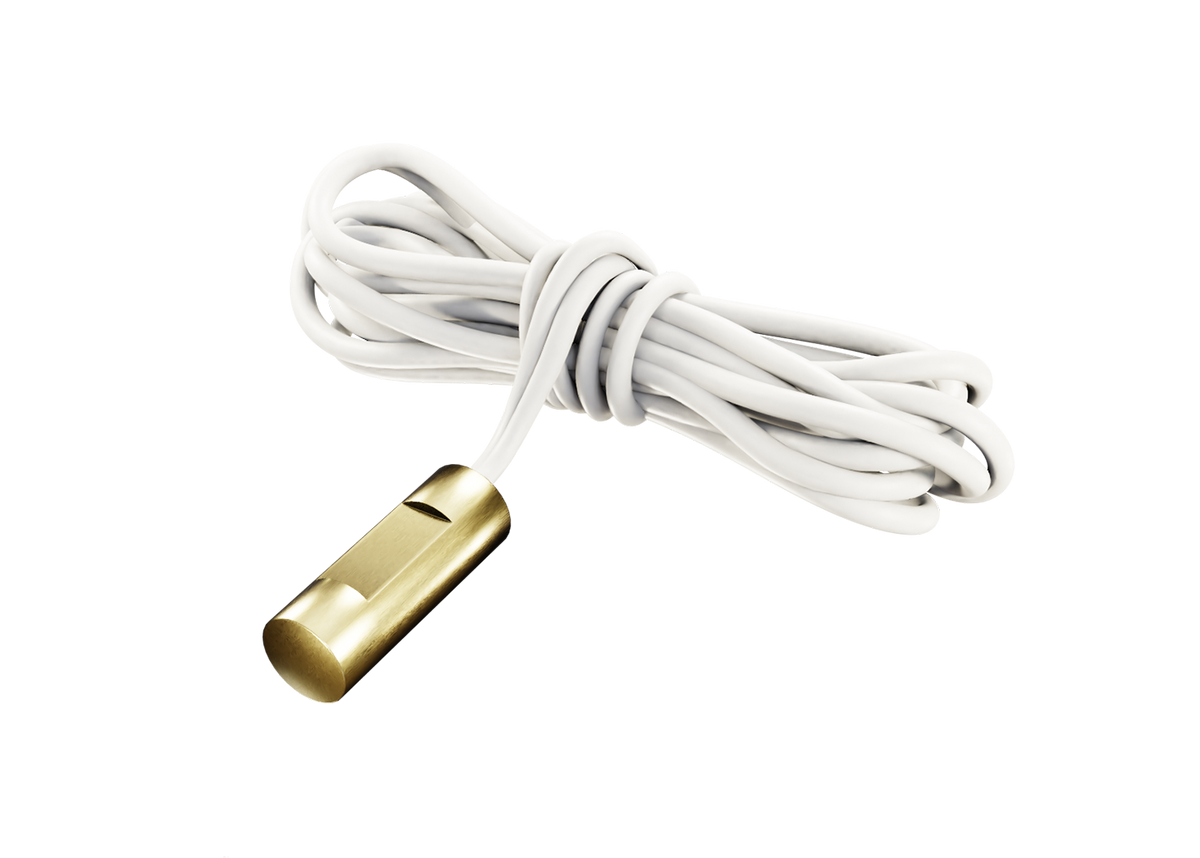

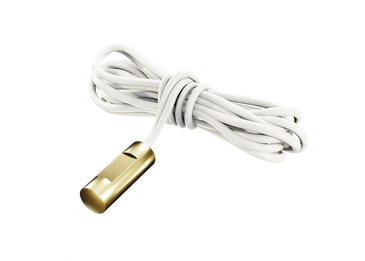

1, 000 Ohm Nickel RTD, Pipe Mount, Brass, NIST Cert
Documents and manuals
ACI A/1K-NI-PM-NIST Documents
Overview
Details for A/1K-NI-PM-NIST
PIPE MOUNT, NIST
The ACI Nickel Pipe Mount Series features a 1.1 long Brass sensing enclosure with slight curvature on the bottom that is designed to increase the surface area and improve thermal conductivity between the pipe and sensor. Each sensor has two, 24 inch 22 AWG Etched Teon colored lead wires to dierentiate many dierent sensor types. The sensors in this series are manufactured using ACIs proven double encapsulation process to eliminate the eects of moisture upon the sensors and to improve the thermal response times using our high quality, thermally conductive epoxy. The Pipe Mount sensor should be used on pipe or coil sizes from 1/2 to 1 in diameter and condensing environments. A 7.5 nylon wire tie is supplied for fastening the sensor to the top of the pipe. For best accuracy and increased thermal conduction between the pipe and the sensor, we recommend cleaning the pipe and to use thermal grease between the mating surfaces and then to insulate the sensor from the eects of the ambient air. An optional plenum rated cable or NIST Certicates can be ordered as referenced in the ordering grid. Please contact ACI for more information regarding this sensor or to discuss your application in further detail. Other Options may be available upon request.
Specifications
Item Number | A/1K-NI-PM-NIST |
Brand | ACI |
