A/1K-NI-A-8’-GD-NIST | 1,000 Ohm Nickel RTD, Copper Averaging, 8', Galvanized Enclosure, NIST | ACI

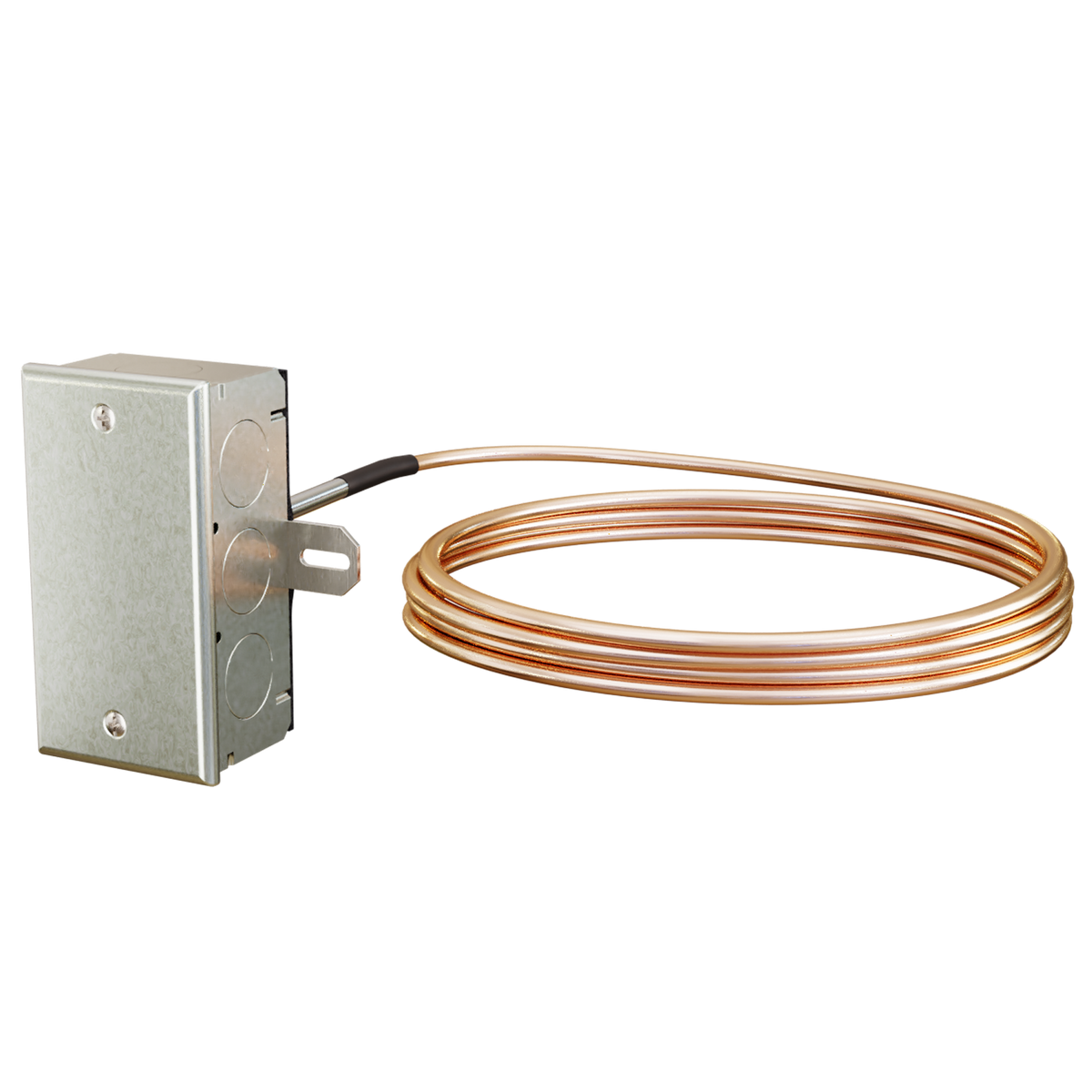

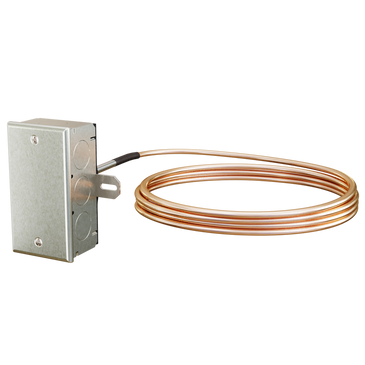

1,000 Ohm Nickel RTD, Copper Averaging, 8', Galvanized Enclosure, NIST

The ACI Nickel Copper Averaging Series features a bendable copper sensing element with two colored lead wires to dierentiate the dierent sensor types. The sensors in this series are manufactured with multiple sensing points determined by the length of the sensing element. Averaging sensors provide a more accurate average temperature of the air inside large ducts when compared to that of a single point sensor. Each of the elements is hermetically sealed to prevent moisture intrusion and includes an integrated foam pad to seal the duct and dampen vibrations. The benets of copper sensing elements are that they have improved thermal conductivity and higher corrosion resistance when compared to similar aluminum style sensors. Copper has also been proven to provide an additional antibacterial eect to many of the airborne contaminants, molds and bacteria found in duct systems. Sensor lengths should be selected based upon the dimensional area of your duct. ACIs standard enclosures include the -GD Galvanized or -PB plastic box with hinged cover. Each unit includes nylon wire ties and mounts for mounting. Optional copper capillary and universal mounting clips, NEMA/IP rated weather proof enclosures and NIST Certicates are also available. Applications: Air Handlers, Roof Top Units, Mixed Air/Discharge/Supply Air Temperature Monitoring, Data Centers, Hospitals
