A/1K-2W-R2O | 1,000 Ohm (Two Wires) RTD, Room (R2), w/ Override | ACI

1,000 Ohm (Two Wires) RTD, Room (R2), w/ Override

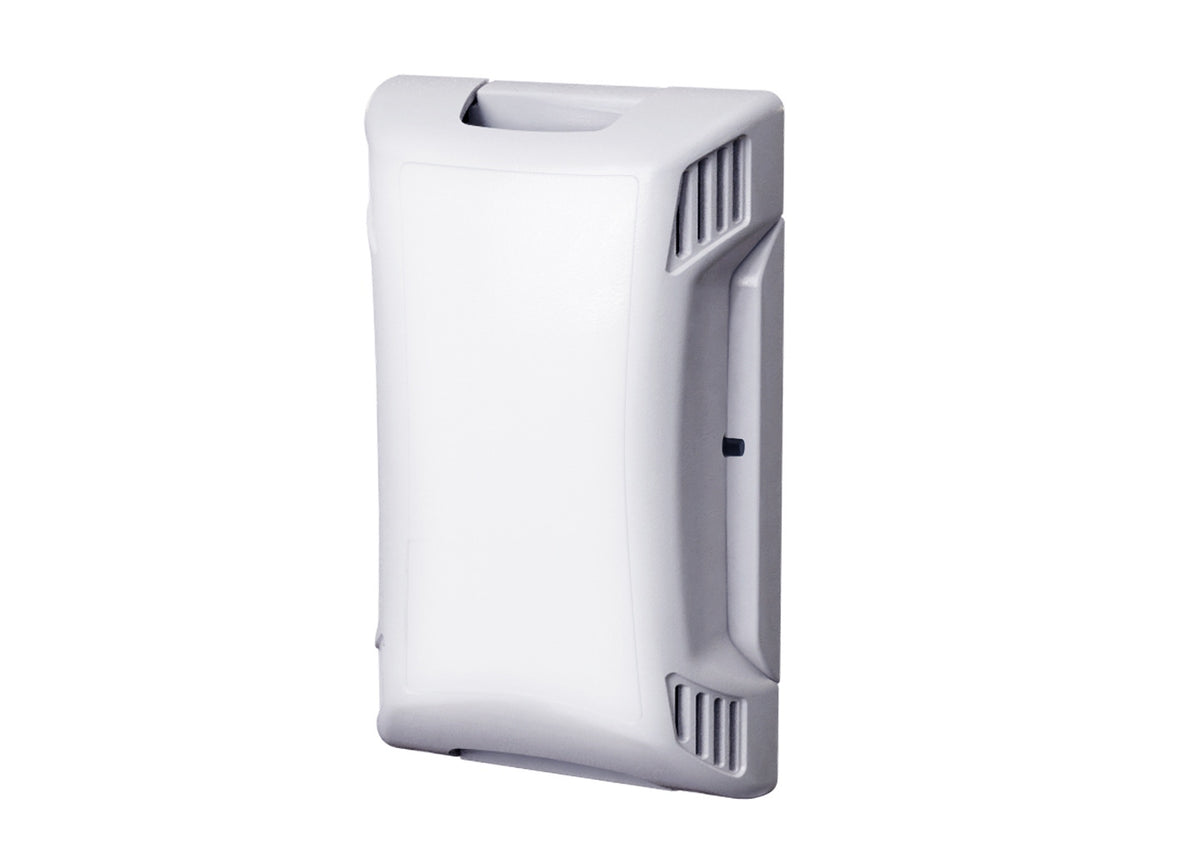

The ACI Platinum Room Series combines flexibility with attractive styling in our -R2 style enclosures which include four-way air flow design too minimize self-heating to the sensor. These enclosures are ordered in a White -R2 color and designed to be mounted over a single gang junction box or hole in the wall using drywall anchors. Screw terminal blocks are provided for making connections to your building management system. An optional 1/8 Black foam pad with pressure sensitive adhesive is available to insulate the sensor from thermal drafts within the wall or wall surface temperature. A 1/16 Hex driver can be used to secure the cover from being easily removed. Due to the high number of options, these sensors are customized to work with your building management system. All model numbers will be entered such that you will be given a unique, six-digit Configuration ID Number on your order confirmation and product labels. This six-digit Configuration ID Number should be used to easily identify and reorder sensors for all future orders to guarantee that they are configured the same.

Applications: Space Temperature Sensing, offi­ce Buildings, Schools, Colleges, Commercial Buildings, OEM Opportunities

The ACI Platinum Room Series is covered by ACI's Five (5) Year Limited Warranty. The warranty can be found in the front of ACI's Sensors & Transmitters catalog, as well as on ACI's website, Www.Workaci.Com.
