Documents: A/10K-E1-PO-4"-10'CL2P-NIST
A/10K-E1-PO-4"-10'CL2P-NIST | 10,000 Ohm (E1) Thermistor, Probe Only, 4", 10' Plenum Cable, NIST cert | ACI
10, 000 Ohm Thermistor (E1), Probe Only, 4", 10' Plenum Cable, NIST cert
Overview Details for A/10K-E1-PO-4"-10'CL2P-NIST
10,000 Ohm (E1) Thermistor, Probe Only, 4", 10' Plenum Cable, NIST cert

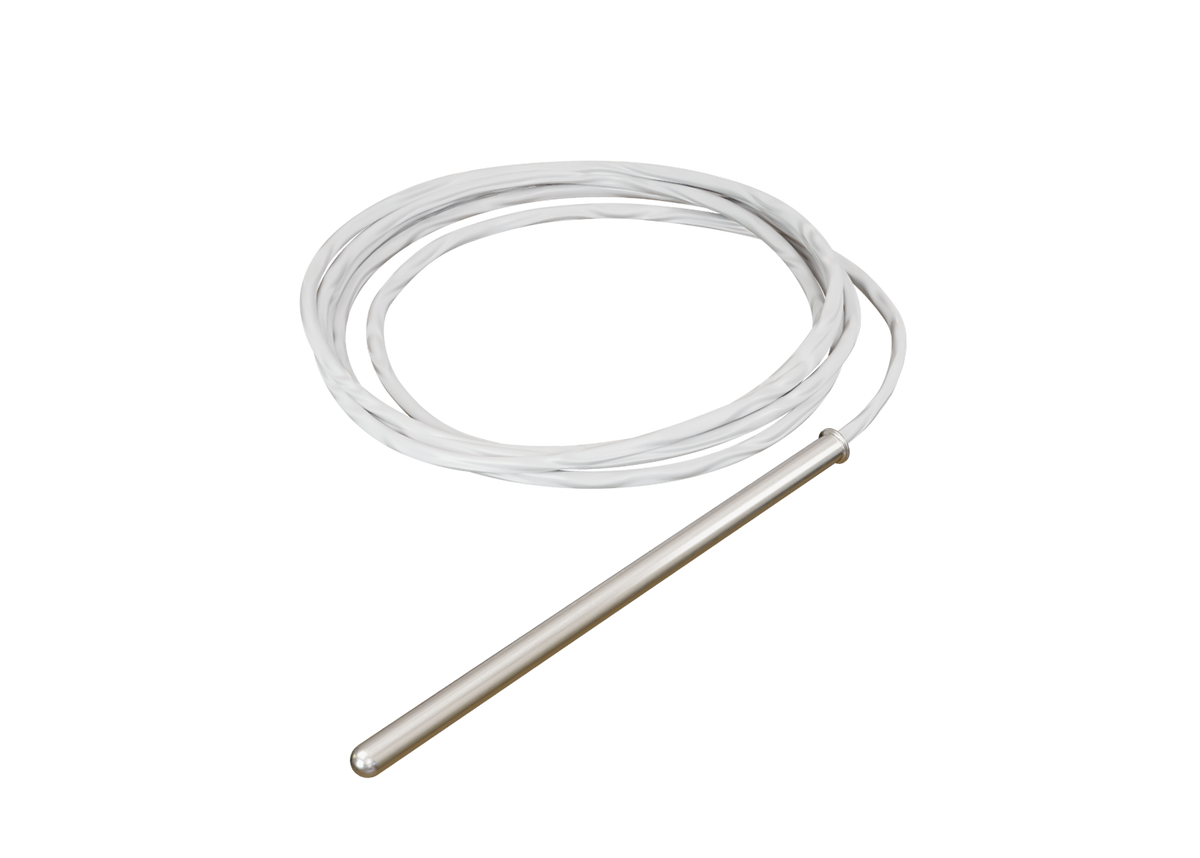

The ACI Thermistor Probe Only Series features a ¼ diameter stainless steel probe with two, 14 or 24 22 AWG Etched Teflon colored lead wires to differentiate the various NTC sensor types. The sensors in this series are manufactured using ACIs proven double encapsulation process to eliminate the effects of moisture upon the sensors and to increase the thermal response time using our high quality, thermally conductive epoxy. The probe is designed to be used in duct and immersion applications when used with the proper length thermowell. Applications: Roof Top Units, Air Handlers, Supply/Discharge Air/Return/Mixed/Exhaust Air Duct Temperature Sensing, Immersion Temperature Sensors, Replacement Temperature Sensors
Specifications
Item Number | A/10K-E1-PO-4"-10'CL2P-NIST |
Brand | ACI |
