A/100-LTS-10'-NIST | NIST CONFIGURATOR | ACI
100 Ohm (Three Wires) RTD, 2" Freezer Probe 316 SS, 10', NIST Cert
Documents and manuals
ACI A/100-LTS-10'-NIST Documents
Overview
Details for A/100-LTS-10'-NIST
NIST CONFIGURATOR

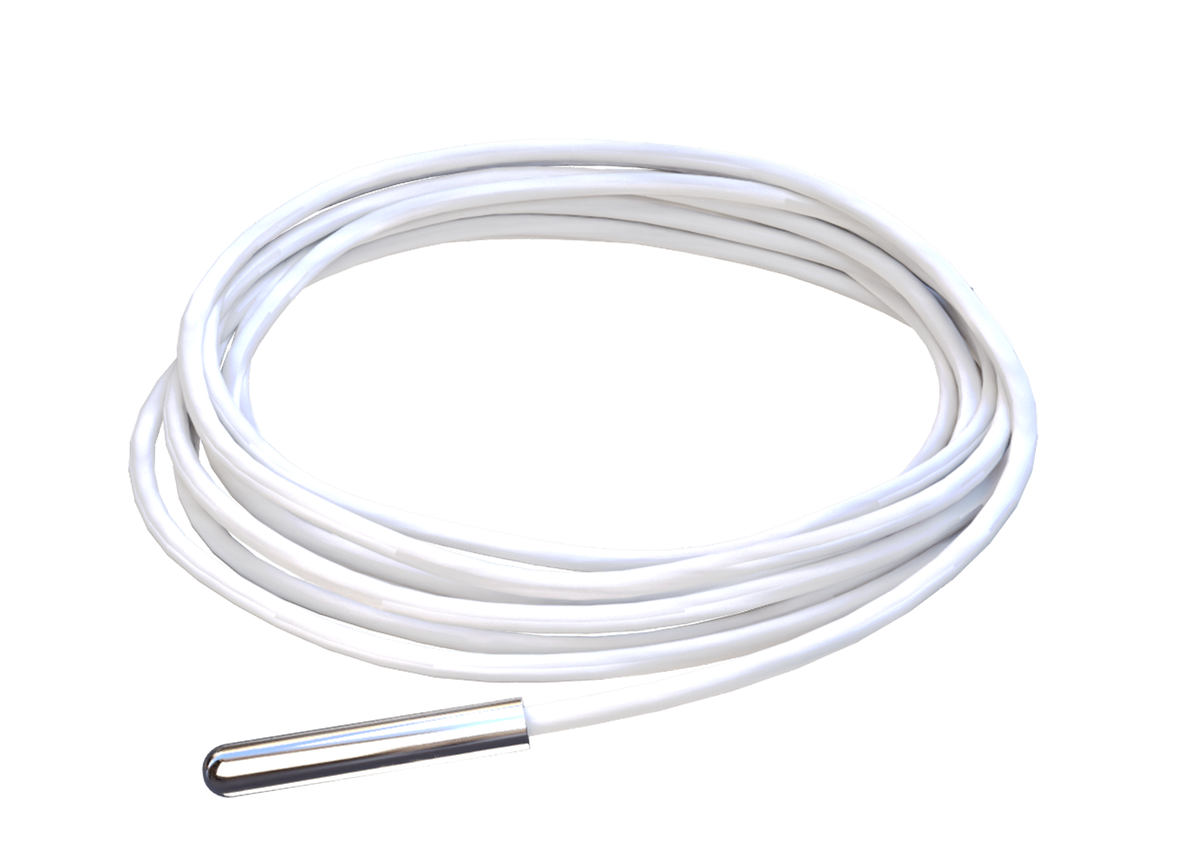

The ACI RTD Freezer Series features a 3/16 diameter stainless steel probe with a 10 Foot or 30 Foot, 3 Conductor, 24 AWG Plenum rated jacketed Teflon cable. The sensors in this series are manufactured using ACIs proven encapsulation process to eliminate the effects of moisture upon the sensors. The sensor is designed to be used in Pharmaceutical, Liquid Nitrogen, Freezers, Refrigerators and Hydronic applications where a remote sensor is required due to the extreme temperature ranges and presence of ice and moisture. An optional -GD galvanized or -4x NEMA 4X weather proof enclosure and NIST Certificates are available as referenced in the ordering grid on the product data sheet. The Freezer RTD sensors can be used with any of the Single or Triple Point Glycol Kits for use in applications where a Thermal Buffer (slower) response time is desired. Please contact ACI for more information regarding this sensor or to discuss your application in further detail. Other options may be available upon request. Applications: Pharmaceutical, Liquid Nitrogen, Refrigerators, Freezers, Hydronic Heating, Remote Sensor Applications
Specifications
Item Number | A/100-LTS-10'-NIST |
Brand | ACI |
