A/100-3W-I-6"-PB-NIST | NIST CONFIGURATOR | ACI

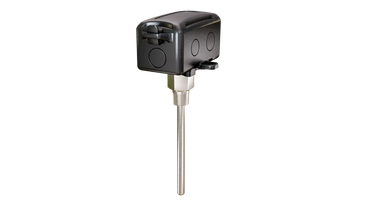

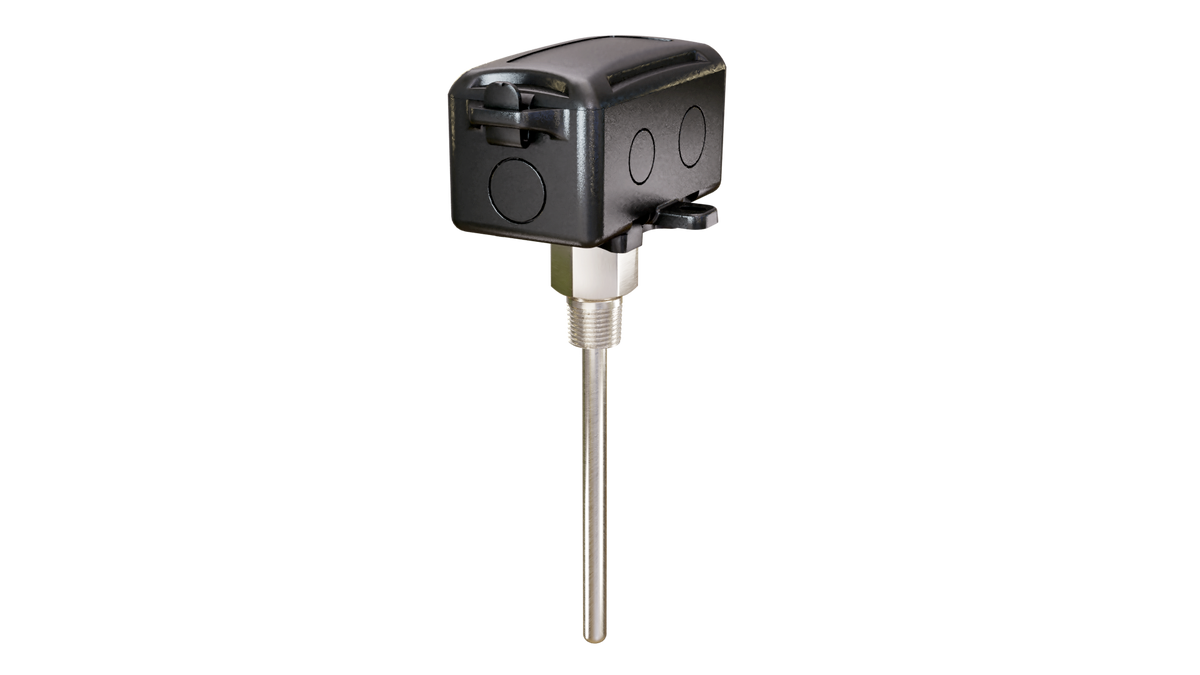

100 Ohm (Three Wires) RTD, Immersion, Welded Well, 6", Plastic Enclosure, NIST Cert

Brand: ACISKU: A/100-3W-I-6"-PB-NIST

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to A/100-3W-I-6"-PB-NIST

Jump to: Overview & Specifications Reviews

Overview Details for A/100-3W-I-6"-PB-NIST

NIST CONFIGURATOR

The plastic box, immersion configuration has male 1/2 inch NPT threads. The sensing element is double encapsulated to avoid sensor failures caused by moisture infiltration. ACI also standardizes with etched Teflon lead wires and 2 Part wells. Please note that the PB enclosure is rated to 203 degrees Fahrenheit. ACI immersion temperature sensors are designed for HVAC, Building Automation Systems, and light industrial applications. Specific applications include: chillers, hot water systems, tanks, and boilers. NOTE: Welded thermowells are not intended for moving water or high pressure service. Fluid velocity and wake frequency are primary factors in well failure. Machined thermowells should be used in these types of applications.

Negative temperature coefficient
Double encapsulated sensor
Easy open / close latch system (no screws)
