Documents: A/100-3W-I-4"-BB-NIST

Datasheet Installation Instructions More Info

A/100-3W-I-4"-BB-NIST | 100 Ohm (Three Wires) RTD, Immersion, Welded Well, 4", NEMA 3R Enclosure, NIST Cert | ACI

100 Ohm (Three Wires) RTD, Immersion, Welded Well, 4", NEMA 3R Enclosure, NIST Cert

Brand: ACISKU: A/100-3W-I-4"-BB-NIST

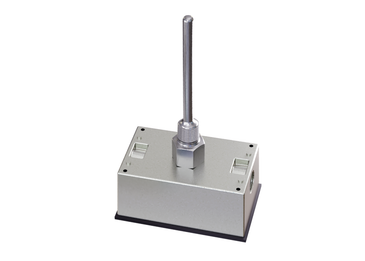

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to A/100-3W-I-4"-BB-NIST

Jump to: Overview & Specifications Reviews

Overview Details for A/100-3W-I-4"-BB-NIST

100 Ohm (Three Wires) RTD, Immersion, Welded Well, 4", NEMA 3R Enclosure, NIST Cert

The metal bell box, with well configuration has a NEMA 3R rating and is designed for wet environments. It has male 1/2 inch NPT threads and the sensing element is double encapsulated to avoid sensor failures caused by moisture infiltration. ACI also standardizes with etched Teflon lead wires and 2 part wells. ACI immersion temperature sensors are designed for HVAC, Building Automation Systems, and light industrial applications. Specific applications include: chillers, hot water systems, tanks, and boilers. NOTE: Welded thermowells are not intended for moving water or high pressure service. Fluid velocity and wake frequency are primary factors in well failure. Machined thermowells should be used in these types of applications.

Negative temperature coefficient
Double encapsulated sensor
NEMA 3R enclosure
