564 | Invita WiFi Thermostat - White | Tekmar

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 564

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Tekmar 564 Documents

Datasheet Installation Instructions More Info

Overview

Details for 564

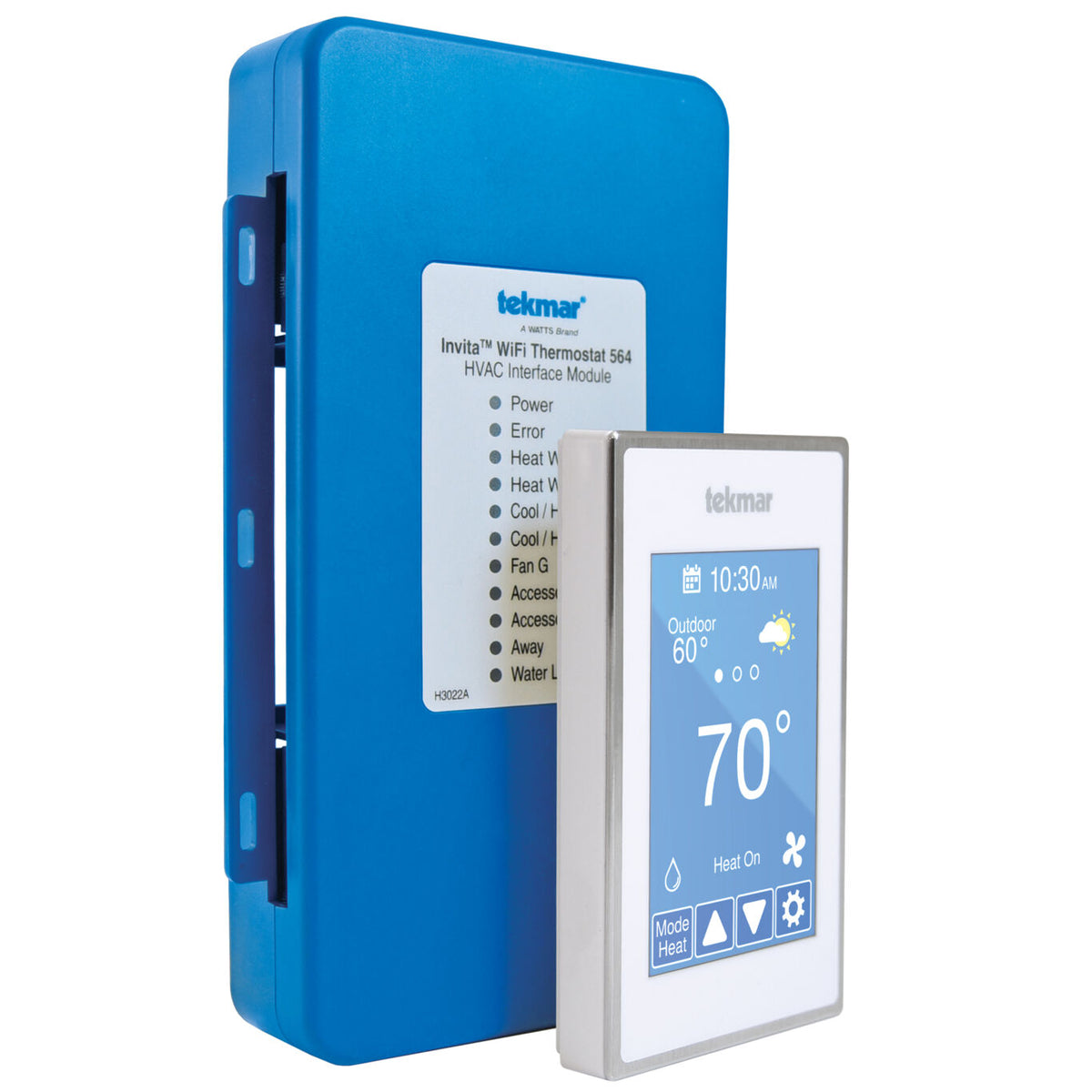

Invita WiFi Thermostat - White

This white finish Invita® WiFi Thermostat makes upgrading easy by using the existing 2 wires from any living space to connect to an HVAC Interface Module in the mechanical room. It works with most types of heating and cooling systems including conventional, heat pump and dual fuel while offering fan, relative humidity and ventilation control. The Watts® Home app provides secure WiFi adjustment, remote temperature control and can send email notifications when there are problems with the HVAC system. The Invita WiFi offers a choice of five display screen color themes.

Features

Mobile and web app, warning email notifications
Water leak notification when connected to Watts FloodSafe Water Detector Shutoff
Ventilation
Slim profile with multiple display color options
Programmable schedule with early start, energy monitoring
Weather, outdoor temperature
Relative humidity control

Specifications

Item Number	564
Brand	Tekmar
Agency Approvals	Meets Class B: ICES-003 & FCC Part 15B
Ambient Conditions	Display: Indoor use only, -4 to 122 degrees F (-20 to 50 degrees C), RH less than or equal to 90 percent non-condensing, HVAC Interface Module: -40 to 122 degrees F (-40 to 50 degrees C), RH less than or equal to 90 percent non-condensing
Communications	WiFi 802.11n, 2.4 GHz, WPA2 encryption
Dimensions	Display: 4-1/2" H x 2-3/4" W x 9/16" D (114 x 70 x 14 mm), HVAC Interface Module: 7-7/16" H x 4-7/16" W x 1-1/4" D (112 x 56 x 31 mm)
Display	3.5" color touchscreen
Enclosure Material	Display: White PVC plastic, HVAC Interface Module: Blue PVC plastic
Enclosure NEMA Rating	NEMA 1
Environmental Notice	Do not use in presence of ammonia such as animal barns
Humidity Sensor	0 to 90 percent plus / minus 4 percent RH
Languages	English/Français/Español
Power Supply	21 to 30 V (ac), 6 VA, Class 2
Relay	30 V (ac), 2 A, Class 2 circuits
RH Output	3.3 V (dc) humidity sensor power, 3.0 mA maximum
Temperature Sensor	NTC thermistor, 10 k ohms at 77 degrees F (25 degrees C plus / minus 0.2 degrees C) Beta = 3892
Zoning - Thermostat Type	WiFi Thermostat
