Overview
Details for 563

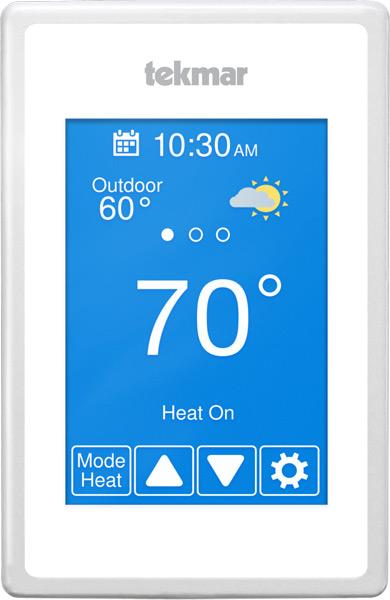

WiFi Thermostat
The WiFi Thermostat 563 operates either a multi-stage conventional or heat pump HVAC system, a fan, and up to two accessories, including a humidifier, dehumidifier and ventilator. When connected to the Internet, the Watts® Home mobile allows the thermostat to be controlled remotely. A 7-day, 4-event programmable schedule is available and the early start feature automatically learns to heat up the room by the scheduled time. An Away mode is quickly and easily accessed to provide energy savings when the space is unoccupied. An optional floor sensor can be installed to enhance comfort and protect floor coverings when operating radiant floor systems.
Features
- Supports dual fuel systems
- Email error and warning notifications, automatic time clock
- Accessory options: humidifier, dehumidifier, HRV/ERV ventilator, water-source heat pump loop valve
- Energy monitoring, multiple background colors
- Optional remote floor, room, outdoor and relative humidity sensors, local outdoor temperature and weather
- Humidifier window frost protection, conventional systems: 2-stage heating, 2-stage cooling, fan and 2 accessories
- 7 day programmable schedule, early start
- Mobile and web app for remote control, away energy savings mode
- Heat pump systems: 4-stage heating, 2-stage cooling, fan, reversing valve and 1 accessory
Specifications
Item Number | 563 |
Brand | Tekmar |
Category | tekmarNet Thermostats |
Agency Approvals | Meets Class B: ICES & FCC Part 15 |
Ambient Conditions | Indoor use only, 32 to 122 degrees F (0 to 50 degrees C), RH less than or equal to 90 percent non-condensing |
Communications | WiFi 802.11n, 2.4 GHz, WPA2 encryption |
Control Type | Microprocessor control, this is not a safety (limit) control |
Dimensions | 4-5/8" H x 3" W x 15/16" D (118 x 76 x 24 mm) |
Display | 3.5" color touchscreen |
Enclosure Material | White PVC plastic |
Enclosure NEMA Rating | NEMA 1 |
Environmental Notice | Do not use in presence of ammonia (animal barns). |
Humidity Sensor | 0 to 90 percent plus / minus 4 percent RH |
Languages | English/Français/Español |
Power Supply | 15 to 30 V (ac/dc), 2 VA, Class 2 |
Relay | 30 V (ac/dc), 2 A, Class 2 circuits |
Temperature Sensor | NTC thermistor, 10 k ohms at 77 degrees F (25 degrees C plus / minus 0.2 degrees C) Beta = 3892 |
Zoning - Thermostat Type | WiFi Thermostat |
