562 | WiFi Thermostat | Tekmar

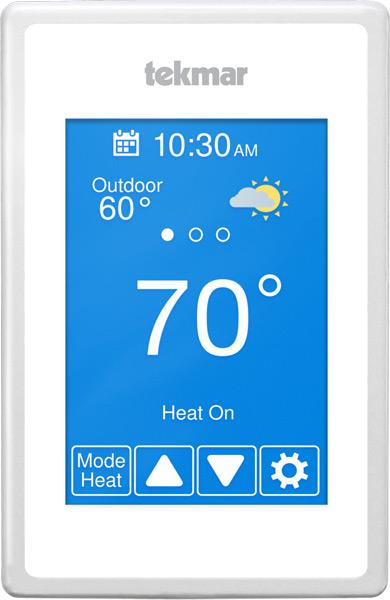

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 562

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Tekmar 562 Documents

Datasheet Installation Instructions More Info

Overview

Details for 562

WiFi Thermostat

The WiFi Thermostat 562 operates a two stage heating, one stage cooling system and a fan. When connected to the Internet, the Watts^® Home mobile app allows the thermostat to be controlled remotely. A 7-day, 4-event programmable schedule is available and the early start feature automatically learns to heat up the room by the scheduled time. An Away mode is quickly and easily accessed to provide energy savings when the space is unoccupied. The thermostat supports radiant floor heating and optional floor sensors can be installed to enhance comfort and protect floor coverings.

Features

Selectable background colors
Automatic software updates, outdoor temperature
Time clock updated from Internet, 7 day programmable schedule
Mobile app for iOS and Android, supports optional floor sensor
3.5 inch color touchscreen
Local weather, Email error and warning notifications
Away energy savings mode, early start
Energy monitoring
English/French/Spanish languages

Specifications

Item Number	562
Brand	Tekmar
Category	tekmarNet Thermostats
Agency Approvals	Meets Class B: ICES & FCC Part 15
Ambient Conditions	Indoor use only, 32 to 122 degrees F (0 to 50 degrees C), RH less than or equal to 90 percent non-condensing
Communications	WiFi 802.11n, 2.4 GHz, WPA2 encryption
Control Type	Microprocessor control, this is not a safety (limit) control
Dimensions	4-5/8" H x 3" W x 15/16" D (118 x 76 x 24 mm)
Enclosure Material	White PVC plastic
Enclosure NEMA Rating	NEMA 1
Power Supply	15 to 30 V (ac/dc), 2 VA, Class 2
Relay	30 V (ac/dc), 2 A, Class 2 circuits
Sensor	NTC thermistor, 10 k ohms at 77 degrees F (25 degrees C plus / minus 0.2 degrees C) Beta = 3892
Zoning - Thermostat Type	WiFi Thermostat
