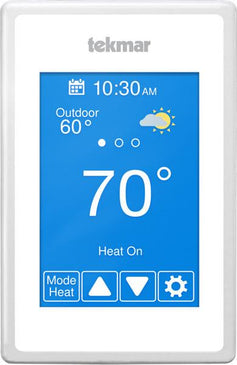

561 | WiFi Thermostat | Tekmar

Brand: TekmarSKU: 561

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 561

Jump to: Overview & Specifications Reviews

Overview Details for 561

WiFi Thermostat

The WiFi Thermostat 561 provides precise temperature control of a one-stage heating system. When connected to the Internet, the Watts^® Home mobile app allows the thermostat to be controlled remotely. A 7-day, 4-event programmable schedule is available and the early start feature automatically learns to heat up the room by the scheduled time. An Away mode is quickly and easily accessed to provide energy savings when the space is unoccupied. The thermostat supports radiant floor heating and optional floor sensors can be installed to enhance comfort and protect floor coverings.

Features

3.5 inch color touchscreen
English/French/Spanish languages
Selectable background colors
Mobile app for iOS and Android, supports optional floor sensor
Energy monitoring
Automatic software updates, outdoor temperature
Local weather, Email error and warning notifications
Away energy savings mode, early start
Time clock updated from Internet, 7 day programmable schedule

Specifications

Item Number	561
Brand	Tekmar
Category	tekmarNet Thermostats
Agency Approvals	Meets Class B: ICES & FCC Part 15
Ambient Conditions	Indoor use only, 32 to 122 degrees F (0 to 50 degrees C), RH less than or equal to 90 percent non-condensing
Communications	WiFi 802.11n, 2.4 GHz, WPA2 encryption
Control Type	Microprocessor control, this is not a safety (limit) control
Dimensions	4-5/8" H x 3" W x 15/16" D (118 x 76 x 24 mm)
Enclosure Material	White PVC plastic
Enclosure NEMA Rating	NEMA 1
Power Supply	15 to 30 V (ac/dc), 2 VA, Class 2
Relay	30 V (ac/dc), 2 A, Class 2 circuits
Sensor	NTC thermistor, 10 k ohms at 77 degrees F (25 degrees C plus / minus 0.2 degrees C) Beta = 3892
Zoning - Thermostat Type	WiFi Thermostat
