557 | tekmarNet Thermostat - Radiant Floor, 2HP/Cool, Backup, Humidity | Tekmar
Documents and manuals
Tekmar 557 Documents
Overview
Details for 557
tekmarNet Thermostat - Radiant Floor, 2HP/Cool, Backup, Humidity

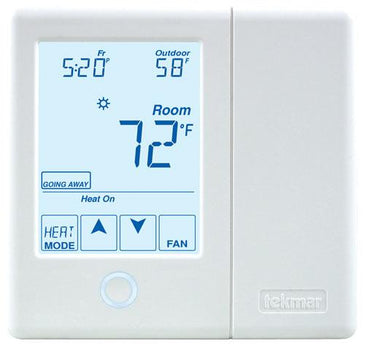

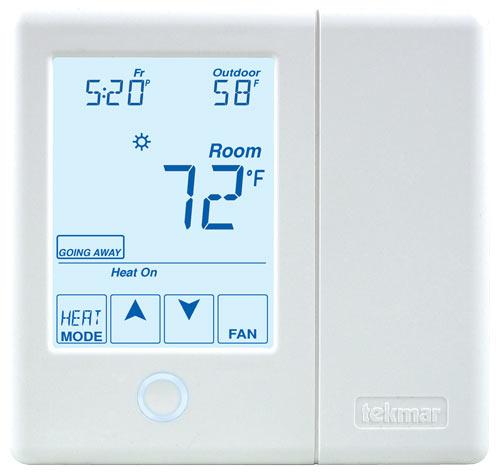

The tekmarNet® Thermostat 557 is a communicating touchscreen thermostat designed to operate either: a hydronic radiant floor with a two stage heat pump (water-to-air or air-to-air) for heating & cooling and an emergency backup heating system; or two stages of heating and two stages of cooling. There are three auxiliary sensor inputs that can be used to measure room, floor, outdoor or duct temperature. The optional floor sensor allows precise heating of radiant floors. Relative humidity level can be measured and controlled using either the built-in or external humidity sensor. The large touchscreen display allows you to easily adjust 7-day programmable schedules and room temperatures to optimize comfort and energy savings. The 557 can connect to tekmarNet ® controls using two or four wires or it can operate as a stand-alone device.
Features
- Optimum start, scenes
- Radiant floor heating and cooling, outdoor and floor temperature display
- Daylight savings time, backlight
- Zone post purge, programmable schedule
- Air group master, network schedule master or member
- Auto heating cycle, tekmarNet® communication compatible
- Temporary hold, away scene key
- Warm weather shut down, zone synchronization
- Touchscreen technology, 3 Auxiliary sensor inputs
Specifications
Item Number | 557 |
Brand | Tekmar |
Category | tekmarNet Thermostats |
Agency Approvals | Meets Class B: ICES & FCC Part 15 |
Ambient Conditions | Indoor use only, 32 to 122 degrees F (0 to 50 degrees C), RH less than or equal to 90 percent non-condensing |
Control Type | Microprocessor control, this is not a safety (limit) control |
Dimensions | 4-1/2" H x 4-3/4" W x 7/8" D (114 x 120 x 22 mm) |
Enclosure Material | White PVC plastic |
Enclosure NEMA Rating | NEMA 1 |
Environmental Notice | Compatible with chlorinated swimming pool environments. Do not use in presence of ammonia (animal barns), methanol, ethanol, acetone. |
Humidity Sensor | 0 to 90 percent plus / minus 3 percent RH |
Power Supply | 24 V plus / minus 10 percent, 60 Hz, 2 VA standby, NEC / CEC Class 2 |
Relay | 24 V (ac) 2A , 0-10 V (dc) Output |
Temperature Sensor | NTC thermistor, 10 k ohms at 77 degrees F (25 degrees C plus / minus 0.2 degrees C) Beta = 3892 |
Zoning - Thermostat Type | tekmarNet Thermostat |
