Details for 554
tekmarNet Thermostat - One Stage Heat / Cool / Fan

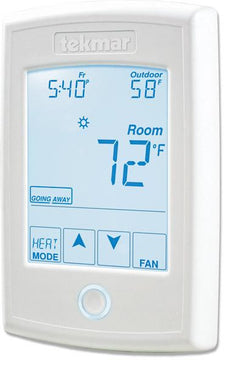

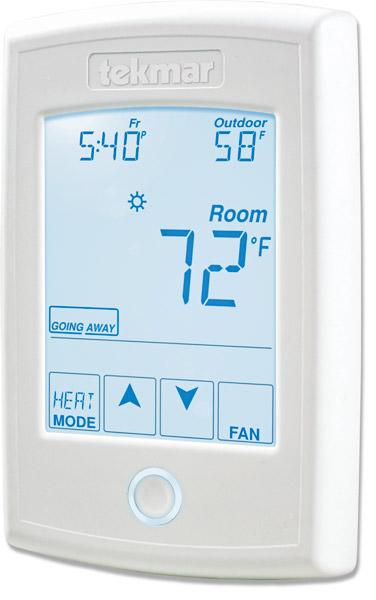

The tekmarNet® Thermostat 554 is a communicating touchscreen thermostat designed to operate one heating stage, one cooling stage, and a fan. The heating stage can be either hydronic or forced air and the cooling stage can operate an air conditioner. There are two auxiliary sensor inputs available to measure room, floor, outdoor, coil or duct temperature. The optional floor sensor allows precise heating of radiant floors by controlling the floor temperature and maintaining the desired room air temperature. The large touchscreen allows you to easily adjust 7-day programmable schedules and room temperature to optimize comfort and energy savings. The 554 can connect to tekmarNet controls using two or four wires or it can operate as a stand-alone thermostat using three wires.
Features
- tekmarNet® communication compatible, touchscreen technology
- 2 auxiliary sensor inputs
- Air group master
- Room temperature limiting
- Network schedule master or member, optimum start
- Radiant floor heating, programmable schedule
- Temporary hold
- Away scene key
- Zone synchronization
Specifications
| Item Number | 554 |
| Brand | Tekmar |
| Category | tekmarNet Thermostats |
| Agency Approvals | Meets Class B: ICES & FCC Part 15 |
| Ambient Conditions | Indoor use only, 32 to 122 degrees F (0 to 50 degrees C), RH less than or equal to 90 percent non-condensing |
| Control Type | Microprocessor control, this is not a safety (limit) control |
| Dimensions | 5" H x 3-1/4" W x 15/16" D (127 x 82 x 23 mm) |
| Enclosure Material | White PVC plastic |
| Enclosure NEMA Rating | NEMA 1 |
| Power Supply | 24 V plus / minus 10 percent, 50/60 Hz, 1.8 VA standby, Class 2 |
| Relay | 24 V (ac), 2 A |
| Sensor | NTC thermistor, 10 k ohms at 77 degrees F (25 degrees C plus / minus 0.2 degrees C) Beta = 3892 |
| Zoning - Thermostat Type | tekmarNet Thermostat |
