532 | tekmarNet 2 Thermostat - One Stage Heat | Tekmar

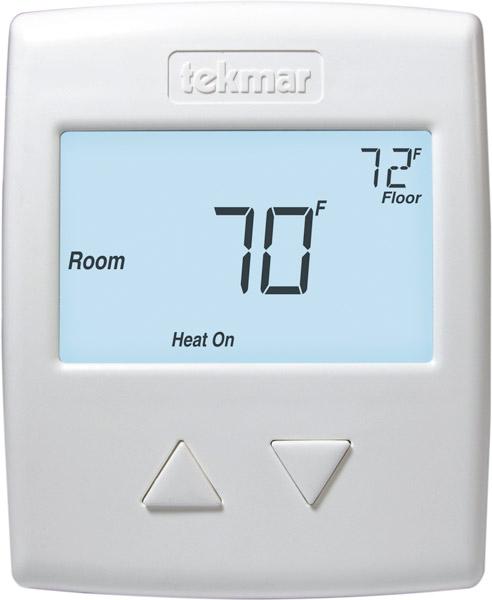

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 532

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Tekmar 532 Documents

Datasheet Installation Instructions More Info

Overview

Details for 532

tekmarNet 2 Thermostat - One Stage Heat

The tekmarNet^® Thermostat 532 is a communicating thermostat designed for one stage hydronic heating systems. Simple up and down buttons and a display with large type make this thermostat easy to read and use. It has two auxiliary sensor inputs that can be assigned to measure room, floor, or outdoor temperature. An optional floor sensor protects the floor from overheating and enhance comfort. The 532 can be wired using two or four wires to connect to tekmarNet zoning controls, or can be installed as a stand-alone thermostat using three wires.

Features

2 auxiliary sensor inputs
tekmarNet communication compatible, radiant floor heating
Network schedule member
Zone synchronization
Room temperature limiting
Air group member
Floor and air temperature control, optimum start
Away scene
Backlight

Specifications

Item Number	532
Brand	Tekmar
Category	tekmarNet Thermostats
Agency Approvals	Meets Class B: ICES & FCC Part 15
Ambient Conditions	Indoor use only, 32 to 122 degrees F (0 to 50 degrees C), RH less than or equal to 90 percent non-condensing
Control Type	Microprocessor control, this is not a safety (limit) control
Dimensions	3-11/16" H x 3" W x 15/16" D (94 x 76 x 24 mm)
Enclosure Material	White PVC plastic
Enclosure NEMA Rating	NEMA 1
Power Supply	24 V plus / minus 10 percent, 50/60 Hz, 1.8 VA standby, Class 2
Relay	24 V (ac/dc), 2 A, Class 2 circuits
Sensor	NTC thermistor, 10 k ohms at 77 degrees F (25 degrees C plus / minus 0.2 degrees C) Beta = 3892
Zoning - Thermostat Type	tekmarNet Thermostat
