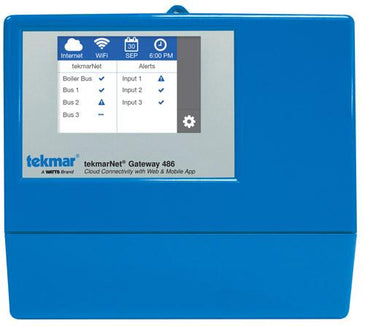

486 | Gateway - Cloud Connectivity with Web & Mobile App | Tekmar

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 486

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Tekmar 486 Documents

Datasheet Installation Instructions More Info

Overview

Details for 486

Gateway - Cloud Connectivity with Web & Mobile App

The tekmarNet® Gateway allows remote access to a tekmarNet HVAC system. Users can view and change settings for each thermostat, including: temperature, heat/cool/auto, fan operation, relative humidity, schedules, and the away scene. In addition, the boiler system temperatures, firing rate, run times, and pump status can be viewed.

All system data can be graphed on a chart or exported as a CSV file. Users are informed of errors and warnings through email or text notifications. The 486 includes three alert inputs that can be used to monitor auxiliary equipment.

Features

Remotely control up to 96 thermostats, and the hot water heating system
Includes visualizations with building location map, floor plans and mechanical schematic
Graph and export up to a year of logged system data
Supports multiple user accounts
Text and email error notifications and history log
Includes three external alert demands for boiler room equipment monitoring
Mobile app for iOS and Android and compatible with web browsers
WiFi or Ethernet connection to Internet

Specifications

Item Number	486
Brand	Tekmar
Category	tekmarNet Controls
Agency Approvals	Class B: ICES & FCC Part 15
Alert Inputs	Short, 0 - 32 V (ac)
Ambient Conditions	Indoor use only, 32 to 122 degrees F (0 to 50 degrees C), RH maximum 90 percent, non-condensing
Control Type	Microprocessor-based, this is not a safety (limit) device
Device Type	Gateway
Dimensions	6-5/8" H x 7-9/16" W x 2-13/16" D (170 x 193 x 72 mm)
Enclosure Material	Blue PVC plastic
Enclosure NEMA Rating	NEMA 1
Ethernet	10/100BASE-T
Power Supply	5 V (dc) regulated, 1 A, Class 2, FCC certified
