Details for 361

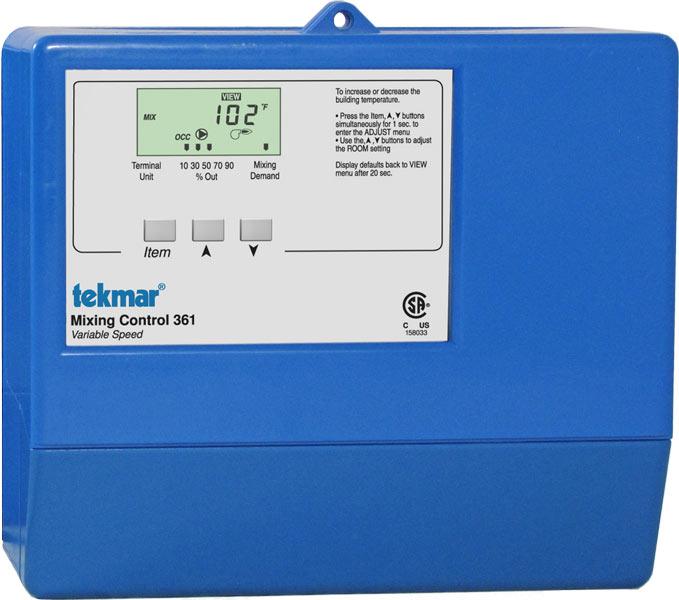

Mixing Control - Variable Speed

The Mixing Control 361 is designed to operate a mixing pump using Outdoor Temperature Reset. It can be used in applications ranging from in-floor radiant to commercial baseboard systems for Boiler Return Protection with full reset. This control regulates a single heating water temperature through Mixing Outdoor Reset. It provides mixing by speeding up or slowing down a single permanent capacitor (standard wet rotor) circulator, and provides control of the mix system pump.

Features

Automatic boiler differential, variable speed pump control
Outdoor temperature reset, indoor temperature feedback (with optional indoor sensor)
Test sequence to ensure proper component operation
Powered mixing system pump output, quick setup for easy installation and programming of control
Warm weather shut down, boiler load control
User comfort adjustment to increase or decrease building space temperature
Advanced settings to fine-tune building requirements
Setback input for energy savings
CSA C US certified (approved to applicable UL standards)

Specifications

Item Number	361
Brand	Tekmar
Category	Heating Controls
Agency Approvals	CSA C US, meets class B: ICES & FCC Part 15
Ambient Conditions	Indoor use only, 32 to 104 degrees F (0 to 40 degrees C), RH less than or equal to 90 percent Non-condensing
Control Type	Microprocessor control, this is not a safety (limit) control
Demand	20 to 260 V (ac) 2 VA
Dimensions	6-5/8" H x 7-9/16" W x 2-13/16" D (170 x 193 x 72 mm)
Enclosure Material	Blue PVC plastic
Enclosure NEMA Rating	NEMA 1
Hydronic - HVAC Control Type	Mixing Control
Power Supply	120 V (ac) plus / minus 10 percent, 50/60 Hz, 1650 VA
Relay	240 V (ac) 10 A 1/3 hp
Sensor	NTC thermistor, 10 k ohms at 77 degrees F (25 degrees C plus / minus 0.2 degrees C) Beta=3892
Variable Pump	120 V (ac) 2.4 A (FLA) 5 A (LRA) fuse T2.5 A 250 V
