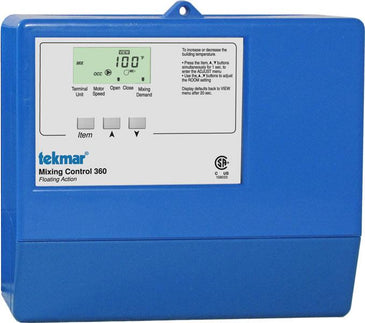

360 | Mixing Control - Float Action | Tekmar

Brand: TekmarSKU: 360

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 360

Jump to: Overview & Specifications Reviews

Overview Details for 360

Mixing Control - Float Action

The Mixing Control 360 is designed to operate a mixing valve using Outdoor Temperature Reset. It can be used in applications ranging from in-floor radiant to commercial baseboard systems for Boiler Return Protection with full reset. This control regulates a single heating water temperature through Mixing Outdoor Reset. It controls the mixing by opening or closing a floating action type mixing valve actuator (3 or 4 way valves), and also provides control of the mix system pump.

Features

CSA C US certified (approved to applicable UL standards)
Test sequence to ensure proper component operation
Floating action mixing control, powered mixing system pump output
Setback input for energy savings
Quick setup for easy installation and programming of control
Outdoor temperature reset, indoor temperature feedback (with optional indoor sensor)
Warm weather shut down, automatic boiler differential
User comfort adjustment to increase or decrease building space temperature
Advanced settings to fine-tune building requirements

Specifications

Item Number	360
Brand	Tekmar
Category	Heating Controls
Agency Approvals	CSA C US, meets class B: ICES & FCC Part 15
Ambient Conditions	Indoor use only, 32 to 104 degrees F (0 to 40 degrees C), RH less than or equal to 90 percent Non-condensing
Control Type	Microprocessor control, this is not a safety (limit) control
Demand	20 to 260 V (ac) 2 VA
Dimensions	6-5/8" H x 7-9/16" W x 2-13/16" D (170 x 193 x 72 mm)
Enclosure Material	Blue PVC plastic
Enclosure NEMA Rating	NEMA 1
Floating Output	24 V (ac) 0.34 A 8 VA
Hydronic - HVAC Control Type	Mixing Control
Power Supply	120 V (ac) plus / minus 10 percent, 50/60 Hz, 1300 VA
Relay	240 V (ac) 10 A 1/3 hp
Sensor	NTC thermistor, 10 k ohms at 77 degrees F (25 degrees C plus / minus 0.2 degrees C) Beta=3892
