Details for 356

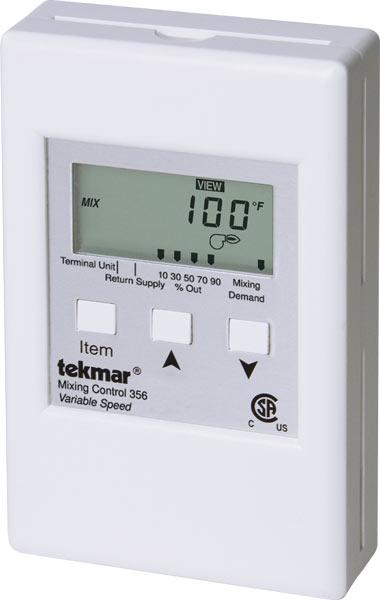

Mixing Control - Variable Speed

The Mixing Control 356 is designed to operate a mixing pump to control the temperature in a hot water heating system using Outdoor Temperature Reset. It can be used in applications ranging from in-floor radiant to commercial baseboard systems for boiler protection with full reset. This control regulates a single heating water temperature through Outdoor Temperature Reset. It provides mixing by speeding up or slowing down a single permanent capacitor (standard wet rotor) circulator.

Features

User comfort adjustment to increase or decrease building space temperature
Outdoor temperature reset, warm weather shut down
Advanced settings to fine-tune building requirements
Variable speed pump control
Test sequence to ensure proper component operation
Boiler load reset
Automatic boiler differential
CSA C US certified (approved to applicable UL standards)
Quick setup for easy installation and programming of control

Specifications

Item Number	356
Brand	Tekmar
Category	Heating Controls
Agency Approvals	CSA C US, meets class B: ICES & FCC Part 15
Ambient Conditions	Indoor use only, 32 to 104 degrees F (0 to 40 degrees C), RH less than or equal to 90 percent Non-condensing
Control Type	Microprocessor control, this is not a safety (limit) control
Demand	Mixing demand 24 V (ac) 2 VA
Dimensions	4-3/4" H x 2-7/8" W x 1-7/8" D (120 x 74 x 48 mm)
Enclosure Material	White PVC plastic
Enclosure NEMA Rating	NEMA 1
Hydronic - HVAC Control Type	Mixing Control
Power Supply	24 V (ac) plus / minus 10 percent, 50/60 Hz, 3 VA
Relay	120 V (ac) 5 A, 1/6 hp
Sensor	NTC thermistor, 10 k ohms at 77 degrees F (25 degrees C plus / minus 0.2 degrees C) Beta=3892
Variable Pump	120 V (ac) 2.4 A, 1/6 hp
