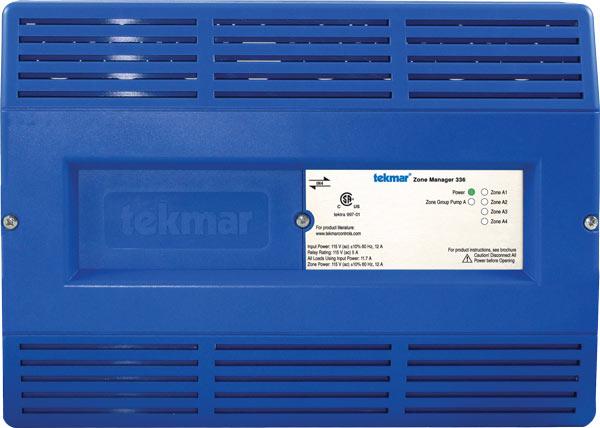

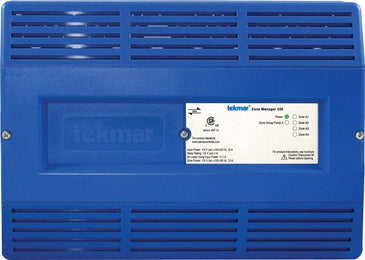

336 | Zone Manager - Four Zone Pumps | Tekmar

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 336

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Tekmar 336 Documents

Datasheet Installation Instructions More Info

Overview

Details for 336

Zone Manager - Four Zone Pumps

The tekmarNet^® 4 Zone Manager 336 is designed to provide a zoning solution for heating systems. It can be used in applications ranging from baseboard zones, to radiant heating zones. This product energizes up to 4 zone pumps. It is capable of providing power for up to 4 tekmarNet ^® 4 or stand alone thermostats and energizing their respective 115 V (ac) zones, as well as providing a Zone Group Pump (powered end switch) contact to enable an external device such as a primary secondary loop pump.

Features

Simple wiring
Internal 24 VA transformer
Provides power to tekmarNet® 4 reset module
Four 115 V powered zone pump outputs
tekmarNet^® 4 compatible
One 115 V powered zone group pump output
CSA C US Certified for use in USA and Canada

Specifications

Item Number	336
Brand	Tekmar
Category	tekmarNet Controls
Agency Approvals	CSA C US, meets Class B: ICES & FCC Part 15
Ambient Conditions	Indoor use only, 32 to 122 degrees F (0 to 50 degrees C), RH less than or equal to 80 percent to 88 degrees F (31 degrees C), down to 50 percent above 104 degrees F (40 degrees C), Altitude less than 6560 ft. (2000 m), Installation Category II, Pollution Degree
Control Load	Combined load on input power 11.7 A, on zone power 12 A max
Control Type	Microprocessor control, this is not a safety (limit) control
Dimensions	8-1/16" H x 11-1/8" W x 2-15/16" D (204 x 282 x 74 mm)
Enclosure Material	Blue PC+ABS plastic with metal top and bottom conduit connection walls
Enclosure NEMA Rating	NEMA 1
Power Supply	115 V (ac) plus / minus 10 percent, 60 Hz, 12 A max
Transformer Power Available	24 V (ac) 24 VA, fuse T1.25 A 250 V
Zone Group Pump	24 V (ac) less than 0.1 VA
Zone Group PumpA Relay	115 V (ac) 5 A
Zone Pump Relay	115 V (ac) 5 A max
Zoning - Thermostat Type	t4 Zone Manager
