316 | tN4 Wiring Center - Four Zone Pumps | Tekmar

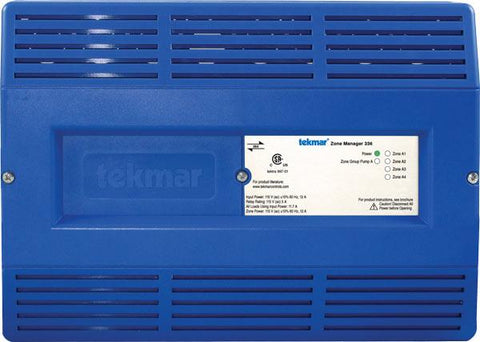

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 316

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Tekmar 316 Documents

Datasheet Installation Instructions More Info

Overview

Details for 316

tN4 Wiring Center - Four Zone Pumps

The tekmarNet^® 4 Wiring Center 316 is designed to provide a zoning solution for heating systems. It can be used in applications ranging from baseboard zones, to radiant heating zones. This control energizes up to 4 zone pumps. It is capable of providing power for up to 4 tekmarNet ^® 4 or stand alone thermostats and energizing their respective 115 V (ac) zones, as well as providing an end switch closure to enable an external device such as a boiler.

Features

Isolated end switch
External diagnostic LEDs
CSA C US Certified for use in USA and Canada
For use with tekmarNet^® 4 thermostats
tN4 expansion terminals
Four 115 V (ac) powered zone outputs

Specifications

Item Number	316
Brand	Tekmar
Category	tekmarNet Controls
Agency Approvals	CSA C US, meets class B: ICES & FCC Part 15
Ambient Conditions	Indoor use only, 32 to 122 degrees F (0 to 50 degrees C), RH less than or equal to 90 percent non-condensing
Control Type	Microprocessor control, this is not a safety (limit) control
Dimensions	5.5" H x 5.5" W x 2.25" D (140 x 140 x 57 mm)
Enclosure Material	Blue PC+ABS plastic
Enclosure NEMA Rating	NEMA 1
End Switch Relay	24 V (ac) 2 A
Power Supply	24 V (ac) plus / minus 10 percent, 60 Hz, 100 VA max, Class 2, Control Load 10 VA
Zone Power Input	115 V (ac) 12 A max
Zone Pump Relay	115 V (ac) 5 A
Zoning - Thermostat Type	tN2 Wiring Center
