314 | tN2 Wiring Center - Four Zone Pumps | Tekmar

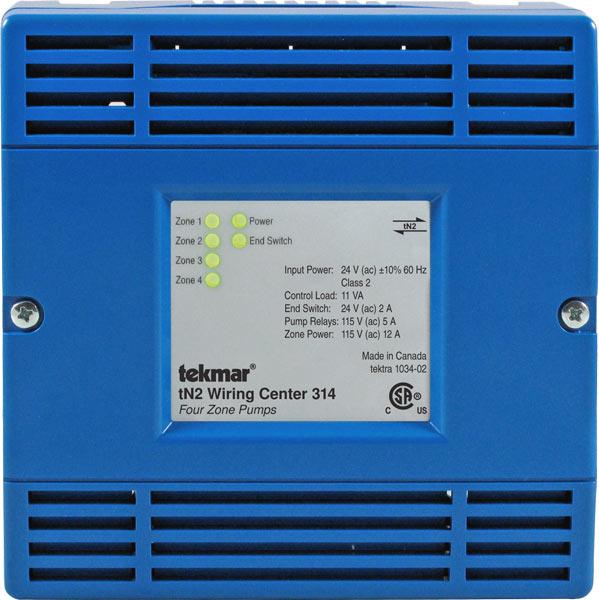

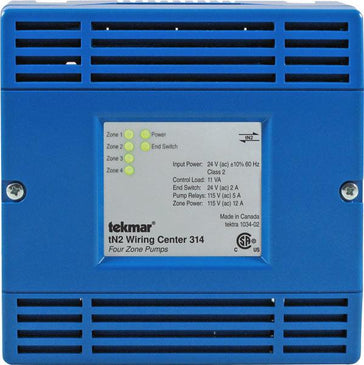

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 314
Documents and manuals
Tekmar 314 Documents
Overview
Details for 314
tN2 Wiring Center - Four Zone Pumps
The tekmarNet® 2 Wiring Center 314 is designed to provide a zoning solution for heating systems. It can be used in applications ranging from baseboard zones, to radiant heating zones. This product provides power for up to four tekmarNet ® 2 thermostats and up to four 115 V (ac) zones pump outputs, as well as providing an end switch closure to enable an external device such as a boiler. An outdoor sensor input is included and provides the outdoor air temperature reading on each thermostat when an optional outdoor sensor is installed.Features
- tN4 expansion terminals
- Outdoor sensor input
- Isolated end switch
- Supports two-stage tekmarNet® 2 thermostats
- For use with tekmarNet® 2 thermostats only
- External diagnostic LEDs
- Four 115 V (ac) powered pump outputs
- CSA C US Certified for use in USA and Canada
- Only requires 2 wires per zone
Specifications
Item Number | 314 |
Brand | Tekmar |
Category | tekmarNet Controls |
Agency Approvals | CSA C US, meets class B: ICES & FCC Part 15 |
Ambient Conditions | Indoor use only, 32 to 122 degrees F (0 to 50 degrees C), RH less than or equal to 90 percent non-condensing |
Control Type | Microprocessor control, this is not a safety (limit) control |
Dimensions | 5.5" H x 5.5" W x 2.25" D (140 x 140 x 57 mm) |
Enclosure Material | Blue PC+ABS plastic |
Enclosure NEMA Rating | NEMA 1 |
End Switch Relay | 24 V (ac) 2 A |
Power Supply | 24 V (ac) plus / minus 10 percent, 60 Hz, 3 VA min, 11 VA max, Class 2 |
Sensor | NTC thermistor, 10 k ohms at 77 degrees F (25 degrees C plus / minus 0.2 degrees C) Beta = 3892 |
Zone Power Input | 115 V (ac) 12 A max |
Zone Pump Relay | 115 V (ac) 5 A |
Zoning - Thermostat Type | tN2 Wiring Center |
