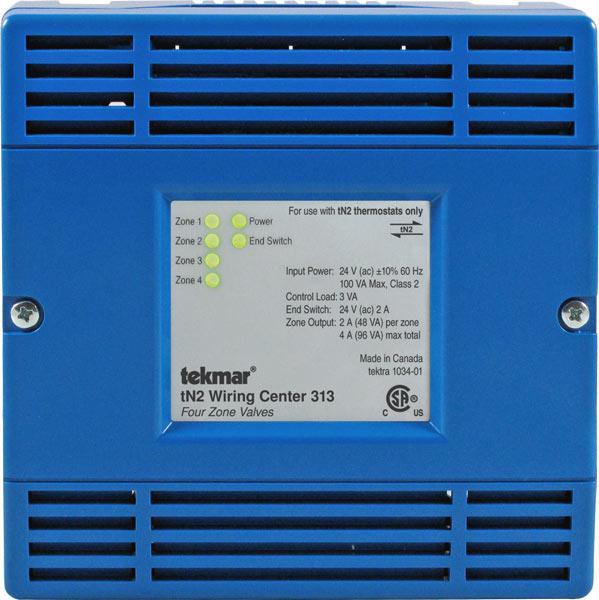

tN2 Wiring Center - Four Zone Valves

The tekmarNet^® 2 Wiring Center 313 is designed to provide a zoning solution for heating systems. It can be used in applications ranging from baseboard zones, to remote manifolds for radiant heating. This product provides power for up to four tekmarNet ^® 2 thermostats, and up to four 24 V (ac) zones valve outputs, as well as providing an end switch closure to enable an external device such as a boiler. A line voltage output on the back of the control can operate a zone group pump if required. An outdoor sensor input is included and provides the outdoor air temperature reading on each thermostat when an optional outdoor sensor is installed.

Features

CSA C US certified for use in USA and Canada
Powered zone group pump output
External diagnostic LEDs
tN4 expansion terminals
Supports two-stage tekmarNet^® 2 thermostats
Outdoor sensor input
Only requires 2 wires per zone, four 24 V (ac) powered zone outputs
For use with tekmarNet^® 2 thermostats only
Isolated end switch

Specifications

Item Number	313
Brand	Tekmar
Category	tekmarNet Controls
Agency Approvals	CSA C US, meets class B: ICES & FCC Part 15
Ambient Conditions	Indoor use only, 32 to 122 degrees F (0 to 50 degrees C), RH less than or equal to 90 percent non-condensing
Control Type	Microprocessor control, this is not a safety (limit) control
Dimensions	5.5" H x 5.5" W x 2.25" D (140 x 140 x 57 mm)
Enclosure Material	Blue PC+ABS plastic
Enclosure NEMA Rating	NEMA 1
End Switch Relay	24 V (ac) 2 A
Power Supply	24 V (ac) plus / minus 10 percent, 60 Hz, 3 VA min, 99 VA max, Class 2
Sensor	NTC thermistor, 10 k ohms at 77 degrees F (25 degrees C plus / minus 0.2 degrees C) Beta = 3892
Zone Group Pump	115 V (ac) 5 A
Zone Valve Load	24 V (ac) 2 A, maximum combined current (zones 1 to 4): 4 A
Zoning - Thermostat Type	tN2 Wiring Center
