Overview

Details for 306V

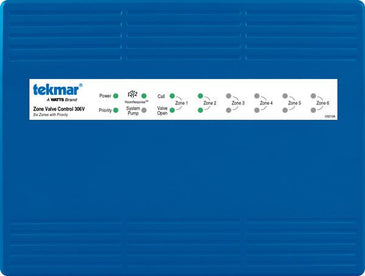

6 Zone Valve Control

The Zone Valve Control 306V connects up to six thermostats and operates zone valves to provide heating to a zoned hydronic heating system. The 306V operates a system pump whenever a zone valve opens. Zone 1 can operate either a zone valve or a circulator to provide heat to an indirect domestic hot water tank with optional priority over zones 2 through 6. The 306V includes optional exercising to prevent circulator seizure when not in use, and optional post purge operation of the domestic hot water tank to maximize energy savings. The 306V provides a RoomResponse^™ signal to modulating-condensing boilers to optimize comfort while improving boiler efficiency.

Features

Pump exercising, post purge
CSA approved
Fuses protect transformers and pumps
Compatible with 2, 3 and 4-wire zone valves, unlimited zone expansion
Four ground screws, Top, bottom and back conduit knockouts
LED for each zone, priority, end switch and RoomResponse^™, away signal shared between tekmar thermostats
RoomResponse^™ signal, compatible with all low voltage thermostats
Two spare fuses included
Zone priority, priority override
