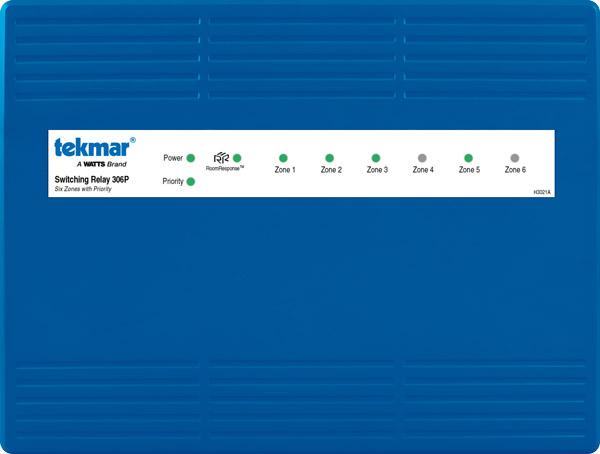

306P | 6 Pump Switching Relay | Tekmar

Brand: TekmarSKU: 306P

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 306P

Jump to: Overview & Specifications Reviews

Overview Details for 306P

6 Pump Switching Relay

The Switching Relay 306P connects up to six thermostats and operates circulators to provide heating to a zoned hydronic heating system. Zone 1 has optional priority over zones 2 through 6 and can be used to provide heat to an indirect domestic hot water tank. The 306P includes optional exercising to prevent circulator seizure when not in use, and optional post purge operation of the last operating zone to maximize energy savings. The 306P provides a RoomResponse^™ signal to modulating-condensing boilers to optimize comfort while improving boiler efficiency.

Features

RoomResponse^™ signal, compatible with all low voltage thermostats
Top, bottom and back conduit knockouts
Away signal shared between tekmar thermostats, four ground screws
Post purge, LED for each zone, priority, end switch and RoomResponse^™
Unlimited zone expansion, zone priority
CSA approved
Priority override, pump exercising
Fuses protect transformers and pumps
Two spare fuses included
