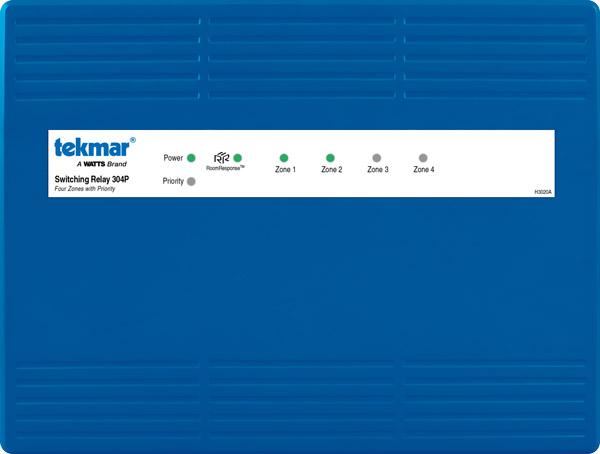

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 304P

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Tekmar 304P Documents

Datasheet Installation Instructions More Info

Overview

Details for 304P

4 Pump Switching Relay

The Switching Relay 304P connects up to four thermostats and operates circulators to provide heating to a zoned hydronic heating system. Zone 1 has optional priority over zones 2 through 4 and can be used to provide heat to an indirect domestic hot water tank. The 304P includes optional exercising to prevent circulator seizure when not in use, and optional post purge operation of the last operating zone to maximize energy savings. The 304P provides a RoomResponse^™ signal to modulating-condensing boilers to optimize comfort while improving boiler efficiency.

Features

Away signal shared between tekmar thermostats, four ground screws
Priority override, pump exercising
CSA approved
Unlimited zone expansion, zone priority
RoomResponse^™ signal, compatible with all low voltage thermostats
Two spare fuses included
Post purge, LED for each zone, priority, end switch and RoomResponse^™
Top, bottom and back conduit knockouts
Fuses protect transformers and pumps
