303V | 3 Zone Valve Control | Tekmar

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 303V

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Tekmar 303V Documents

Datasheet Installation Instructions More Info

Overview

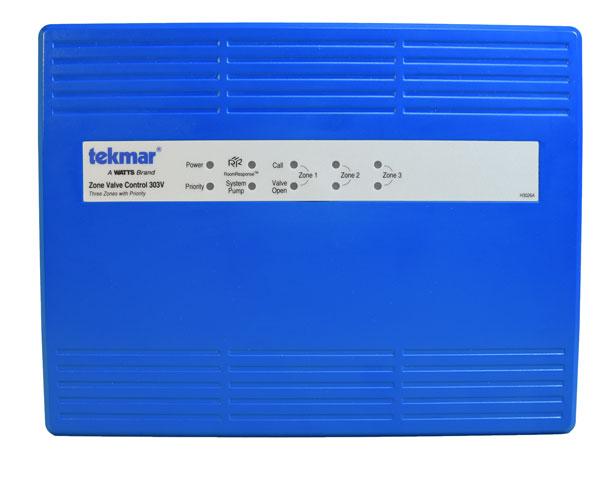

Details for 303V

3 Zone Valve Control

The Zone Valve Control 303V connects up to three thermostats and operates zone valves to provide heating to a zoned hydronic heating system. The 303V operates a system pump whenever a zone valve opens. Zone 1 can operate either a zone valve or a circulator to provide heat to an indirect domestic hot water tank with optional priority over zones 2 and 3. The 303V includes optional exercising to prevent circulator seizure when not in use, and optional post purge operation of the domestic hot water tank to maximize energy savings. The 303V provides a RoomResponse^™ signal to modulating-condensing boilers to optimize comfort while improving boiler efficiency.

Features

CSA approved
RoomResponse^™ signal, compatible with all low voltage thermostats
Two spare fuses included
Fuses protect transformers and pumps
LED for each zone, priority, end switch and RoomResponse^™, away signal shared between tekmar thermostats
Four ground screws, Top, bottom and back conduit knockouts
Compatible with 2, 3 and 4-wire zone valves, unlimited zone expansion
Zone priority, priority override
Post purge, LED for each zone, priority, end switch and RoomResponse^™
