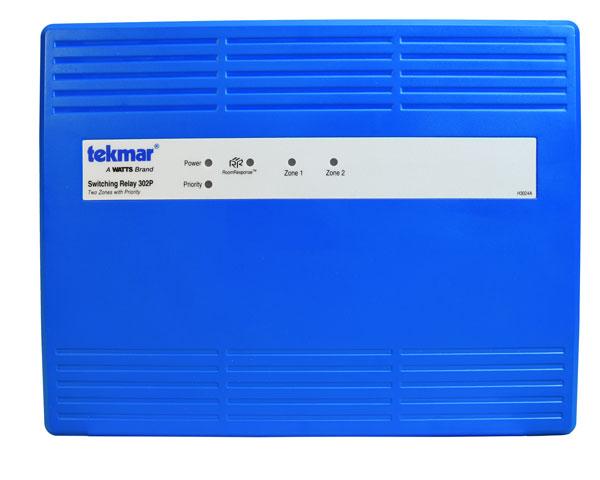

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 302P

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Tekmar 302P Documents

Datasheet Installation Instructions More Info

Overview

Details for 302P

2 Pump Switching Relay

The Switching Relay 302P connects up to two thermostats and operates circulators to provide heating to a zoned hydronic heating system. Zone 1 has optional priority over zone 2 and can be used to provide heat to an indirect domestic hot water tank. The 302P includes optional exercising to prevent circulator seizure when not in use, and optional post purge operation of the last operating zone to maximize energy savings. The 302P provides a RoomResponseTM signal to modulating-condensing boilers to optimize comfort while improving boiler efficiency.

Features

CSA approved
Unlimited zone expansion, zone priority
RoomResponse^™ signal, compatible with all low voltage thermostats
Four ground screws, Top, bottom and back conduit knockouts
Fuses protect transformers and pumps
LED for each zone, priority, end switch and RoomResponse^™, away signal shared between tekmar thermostats
Pump exercising, post purge
Two spare fuses included
Priority override, pump exercising
