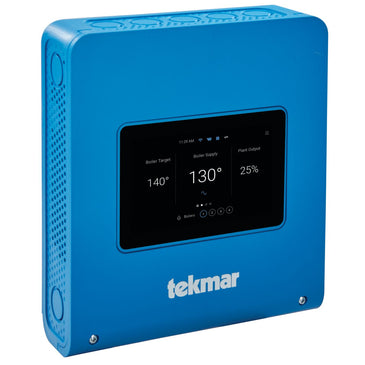

294 | Smart Boiler Control | Tekmar

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 294

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Tekmar 294 Documents

Datasheet Installation Instructions More Info

Overview

Details for 294

Smart Boiler Control

The Smart Boiler Control 294 provides central and indirect domestic hot water heating or volume domestic hot water heating by operating up to four boilers. This can be expanded in groups of four boilers through the use of expansion controls up to a maximum of sixteen boilers. The 294 operates both condensing and non-condensing boilers that are either modulating, single, two, three or four-stage to provide a flexible, cost effective hybrid boiler plant solution. The Watts^® OnSite web and mobile applications provide real-time remote monitoring, setting adjustments, and notifications.

Features

Supports reverse return, primary-secondary and variable primary flow piping systems
Sequential or parallel staging for condensing and non-condensing boiler groups
Remote access using Watts OnSite web/mobile app and notifications through email, SMS or push messages
Operates 4 boilers, expandable up to 16 using expansion controls
Central heating using outdoor reset, indirect DHW, dedicated DHW, setpoint and tekmarNet calls
5 inch color touchscreen with Setup Wizard for simplified installation
