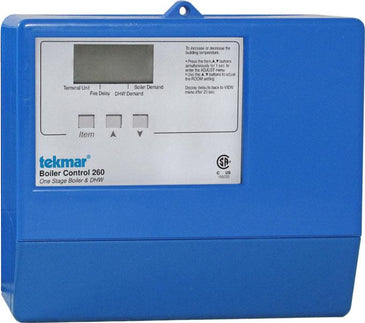

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to 260

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Tekmar 260 Documents

Datasheet Installation Instructions More Info

Overview

Details for 260

Boiler Control - One Stage Boiler & DHW

The Boiler Control 260 is designed to operate a single boiler using Outdoor Temperature Reset. It can be used in applications ranging from baseboard or fan coils, to combination space heating and domestic hot water heating installations. This control regulates a single heating water temperature through Outdoor Temperature Reset and/or Domestic Hot Water control. It is capable of controlling a single on/off boiler and can receive both space heating and/or DHW heat demands.

Features

Advanced settings to fine-tune building requirements
Outdoor temperature reset, indoor temperature feedback (optional)
User comfort adjustment to increase or decrease building space temperature
Powered boiler pump output
Setback input for energy savings, warm weather shut down
DHW pump or valve operation
Automatic boiler differential, Quick setup for easy installation and programming of control
Test sequence to ensure proper component operation
DHW priority (optional)

Specifications

Item Number	260
Brand	Tekmar
Category	Boiler / DHW Controls
Agency Approvals	CSA C US, meets class B: ICES & FCC Part 15
Ambient Conditions	Indoor use only, 32 to 113 degrees F (0 to 45 degrees C), RH less than or equal to 90 percent Non-condensing
Control Type	Microprocessor control, this is not a safety (limit) control
Demand	20 to 260 V (ac) 2 VA
Dimensions	6-5/8" H x 7-9/16" W x 2-13/16" D (170 x 193 x 72 mm)
Enclosure Material	Blue PVC plastic
Enclosure NEMA Rating	NEMA 1
Hydronic - HVAC Control Type	Boiler Control
Power Supply	120 V (ac) plus / minus 10 percent, 50/60 Hz, 1300 VA
Relay	240 V (ac) 10 A, 1/3 hp
Sensor	NTC thermistor, 10 k ohms at 77 degrees F (25 degrees C plus / minus 0.2 degrees C) Beta=3892
