257 | DHW Control - Two Stage | Tekmar

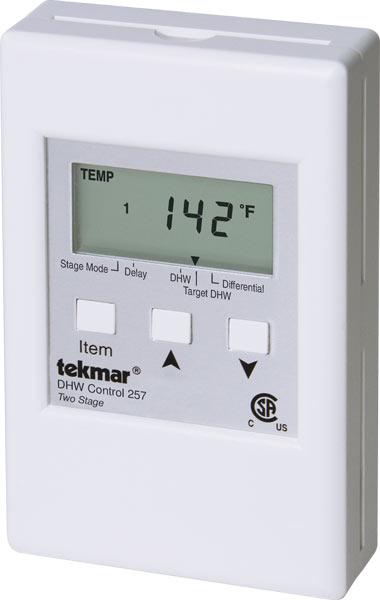

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to 257
Documents and manuals
Tekmar 257 Documents
Overview
Details for 257
DHW Control - Two Stage
The DHW Control 257 is designed to operate multiple boilers for volume water heating. It can be used in hotels, apartments, and laundromats to control multiple boilers and provide quick recovery for domestic hot water. This control regulates a single hot water temperature through DHW control. It is capable of controlling up to 2 on/off boilers using a sensor to maintain a tank setpoint temperature.
Features
- 2 stage control
- Proportional or PID staging
- Equal runtime rotation
- Cumulative boiler run time hours
Specifications
Item Number | 257 |
Brand | Tekmar |
Category | Boiler / DHW Controls |
Agency Approvals | CSA C US, meets class B: ICES & FCC Part 15 |
Ambient Conditions | Indoor use only, -20 to 120 degrees F (-30 to 50 degrees C), RH less than or equal to 90 percent Non-condensing |
Control Type | Microprocessor control, this is not a safety (limit) control |
Dimensions | 4-3/4" H x 2-7/8" W x 7/8" D (120 x 74 x 22 mm) |
Enclosure Material | White PVC plastic |
Enclosure NEMA Rating | NEMA 1 |
Hydronic - HVAC Control Type | DHW Control |
Power Supply | 24 V (ac) plus / minus 10 percent, 50/60 Hz, 3 VA |
Relay | 240 V (ac) 10 A max, 1/3 hp |
Sensor | NTC thermistor, 10 k ohms at 77 degrees F (25 degrees C plus / minus 0.2 degrees C) Beta=3892 |
